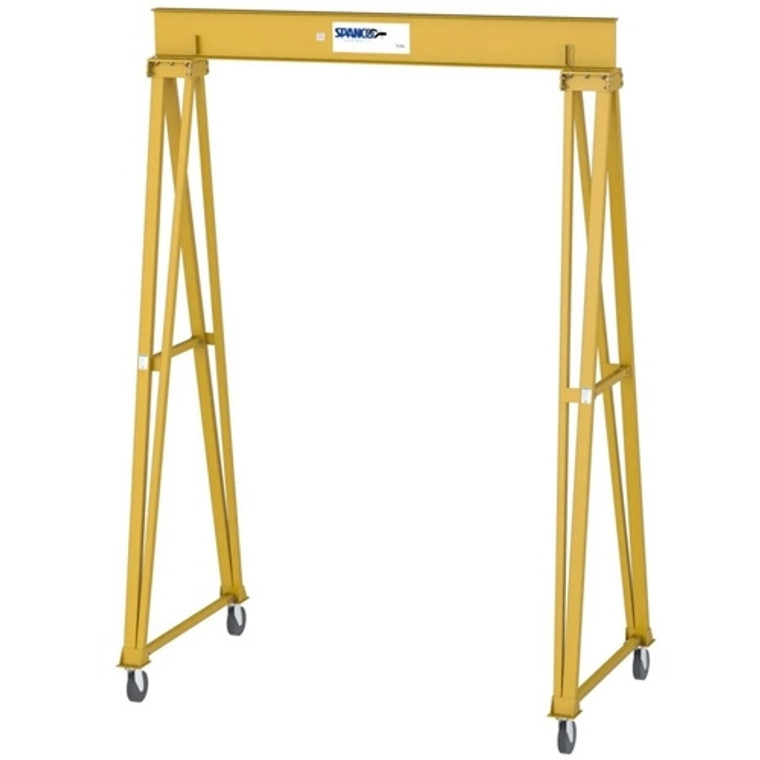

Spanco PF-Series 1 Ton- Adjustable Steel Gantry Crane
$10,186.20
Due to increased shipping charges, all oversized orders will be charged an LTL handling fee of $3000.
Spanco ® PF-Series Gantry Cranes offer high-capacity, high-height, long-span, economical lifting solutions. Spanco PF-Series Gantry Cranes are self-supporting and travel directly on the floor.| Overall Span B1 (ft.) | Model Number | Max. Span B2 (ft.) | Clear Span C (ft.) | Height Under Beam (HUB) D1 (ft.) | Overall Height (HUB) D2 (ft.) | Beam Size E1 | Flange Width E2 (in.) | Tread F (ft.) | Caster Dia. G (in.) | Weight (lbs.) |
| 15' | 1PF1520 | 14' 7" | 12' 0" | 20' 0" | 20' 8" | S8"X18.4# | 4" | 7' 6" | 8" | 814 |
| 1PF1525 | 14' 5" | 25' 0" | 25' 8" | 9' 4" | 1323 | |||||
| 1PF1530 | 11' 0" | 30' 0" | 30' 8" | 11' 3" | 1765 | |||||
| 1PF1535 | 35' 0" | 35' 8" | 13' 2" | 2017 | ||||||
| 20' | 1PF2020 | 19' 7" | 17' 0" | 20' 0" | 20' 10" | S10"X25.4# | 4-5/8" | 7' 6" | 8" | 1046 |
| 1PF2025 | 19' 5" | 25' 0" | 25' 10" | 9' 4" | 1555 | |||||
| 1PF2030 | 16' 0" | 30' 0" | 30' 10" | 11' 3" | 2079 | |||||
| 1PF2035 | 35' 0" | 35' 10" | 13' 1" | 2297 | ||||||
| 25' | 1PF2520 | 24' 7" | 21' 0" | 20' 0" | 21' 0" | S12"X31.8# | 5" | 7' 6" | 8" | 1333 |
| 1PF2525 | 24' 5" | 25' 0" | 26' 0" | 9' 4" | 1874 | |||||
| 1PF2530 | 30' 0" | 31' 0" | 11' 1" | 2366 | ||||||
| 1PF2535 | 35' 0" | 36' 0" | 13' 1" | 2584 | ||||||
| 30' | 1PF3020 | 29' 7" | 26' 0" | 20' 0" | 21' 3" | S15"X42.9# | 5-1/2" | 7' 6" | 8" | 1838 |
| 1PF3025 | 29' 5" | 25' 0" | 26' 3" | 9' 4" | 2376 | |||||
| 1PF3030 | 30' 0" | 31' 3" | 11' 3" | 2858 | ||||||
| 1PF3035 | 35' 0" | 36' 3" | 13' 1" | 3081 |
- Require no footer or floor penetration or concrete foundation.
- Caster Options: Wheel brakes on polyurethane casters, Steel V-groove casters with rigid body for use on V-tracks, or Nylacron‚Ñ¢ wheels available for easier movement on higher-capacity gantry cranes.
- Manufactured in accordance with of the following standards set for crane manufacturers: CMAA Class C service.
- Power Drive Options: V-Track Drives-Two motors drive rigid steel V-groove wheels along a fixed path, Guide Angle Drives-Ideal for installations where gantry runs along a wall, Truly Trackless Drives-Perfect for busy factory floors or when you need to keep your shop floor clear of tracks or angle guides.
