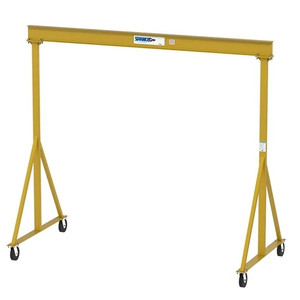

Spanco E-Series 3 Ton Gantry Crane - Fixed Height
$4,039.20
Spanco ® E-Series Gantry Cranes are straightforward, durable, dependent lifting solutions. E stands for Economical but do not be confused. These gantry cranes are heavy-duty, industrial-grade cranes designed for long service life. Made from high-strength square mechanical tubing. Fully-braced uprights for solid I-beam positioning. Equipped with swivel casters with durable mold-on polyurethane wheels for easy rolling and excellent floor protection.
| Overall Span B1 (ft.) |
Model Number | Max. Span B2 (ft.) |
Clear Span C (ft.) |
Height Under Beam (HUB) D1 (ft.) |
Overall Height (HUB) D2 (ft.) |
Beam Size E1 |
Flange Width E2 (in.) |
Tread F (ft.) |
Caster Dia. G (in.) |
Weight (lbs.) |
| 12" | F4000 | 11' 1" | 10' 10" | 10' 0" | 10' 10" | S10"X25.4# | 4-5/8" | 64" | 8" | 719 |
- Caster Options: Wheel brakes on polyurethane casters, or Steel V-groove casters with rigid body for use on V-tracks
- Manufactured in accordance with of the following standards set for crane manufacturers: CMAA, AWS, and OSHA.
- Spanco E-Series Gantry Cranes are not for use with motor-driven hoist trolleys.
