Spanco E-Series 1 Ton Gantry Crane - Fixed Height
$2,616.30
Due to increased shipping charges, all oversized orders will be charged an LTL handling fee of $3000.

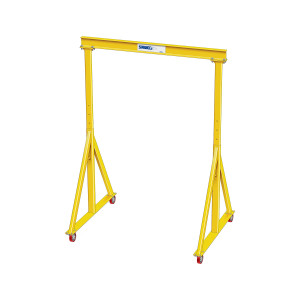

Spanco ® E-Series Gantry Cranes are straightforward, durable, dependent lifting solutions. E stands for Economical but do not be confused. These gantry cranes are heavy-duty, industrial-grade cranes designed for long service life. Made from high-strength square mechanical tubing. Fully-braced uprights for solid I-beam positioning. Equipped with swivel casters with durable mold on polyurethane wheels for easy rolling and excellent floor protection.
Spanco Gantry Cranes Overview
Spanco Gantry Cranes offer mobile lifting solutions for both i...
| Overall Span B1 (ft.) | Model Number | Max. Span B2 (ft.) | Clear Span C (ft.) | Height Under Beam (HUB) D1 (ft.) | Overall Height (HUB) D2 (ft.) | Beam Size E1 | Flange Width E2 (in.) | Tread F (ft.) | Caster Dia. G (in.) | Weight (lbs.) |
| 12" | F2000 | 11' 3" | 10' 11" | 10' 0" | 10' 6" | S6"X12.5# | 3-3/8" | 64" | 6" | 354 |
- Caster Options: Wheel brakes on polyurethane casters, or Steel V-groove casters with rigid body for use on V-tracks
- Manufactured in accordance with of the following standards set for crane manufacturers: CMAA, AWS, and OSHA.
- Spanco E-Series Gantry Cranes are not for use with motor-driven hoist trolleys.
