Spanco
Spanco A-Series 1 Ton - Aluminum Adjustable Height and Span Gantry Crane
$4,092.30 - $7,061.40
Spanco A-Series 3 Ton - Aluminum Adjustable Height and Span Gantry Crane
$8,283.60
Due to increased shipping charges, all oversized orders will be charged an LTL handling fee of $3000.

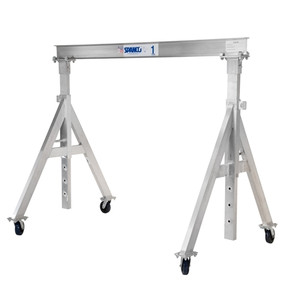

Spanco ® A-Series Aluminum Gantry Cranes are portable, lightweight, low-cost lifting solutions with sturdy A-frame designs. Spanco A-Series Gantry Cranes also have greater clear spans because they do not require four brace legs. You can independently adjust the length of the gantry legs to meet ever-changing lift requirements.| Span B1 (ft.) | Model Number | Clear Span C (ft.) | (HUB) Height Under Boom D1 (ft.) | Beam Size E1 | Flange Width E2 (in.) | Tread F (ft.) | Caster Dia. G (in.) | Weight (lbs.) | |
| Min. | Max. | ||||||||
| 8 | 3ALU0808 | 6' 8" | 6' 2" | 8' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 350 |
| 3ALU0810 | 7' 8" | 10' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 369 | ||
| 3ALU0812 | 9' 8" | 12' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 416 | ||
| 10 | 3ALU1008 | 8' 8" | 6' 2" | 8' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 372 |
| 3ALU1010 | 7' 8" | 10' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 391 | ||
| 3ALU1012 | 9' 8" | 12' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 438 | ||
| 12 | 3ALU1208 | 10' 8" | 6' 2" | 8' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 426 |
| 3ALU1210 | 7' 8" | 10' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 445 | ||
| 3ALU1212 | 9' 8" | 12'2" | ALU12X10.99# | 5" | 4' 8" | 8" | 491 | ||
| 15 | 3ALU1508 | 13' 8" | 6' 2" | 8' 2" | ALU12X10.99# | 5" | 4' 8" | 8" | 467 |
| 3ALU1510 | 7' 8" | 10'2" | ALU12X10.99# | 5" | 4' 8" | 8" | 479 | ||
| 3ALU1512 | 9' 8" | 12'2" | ALU12X10.99# | 5" | 4' 8" | 8" | 532 | ||
- Adjustable Spans: Shortened for transport down narrow aisles.
- Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection
- Virtually eliminates the swaying motion common to other three-way adjustable gantry designs
- Gives greater stability while allowing the I-beam to pivot independently of the legs and to self-center over the load
- Cost effective for areas with infrequent lifts
