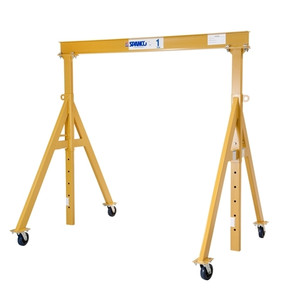

Spanco A-Series 1 Ton - Steel Adjustable Height Gantry Crane
$4,220.10
Due to increased shipping charges, all oversized orders will be charged an LTL handling fee of $3000.
Spanco ® A-Series All-Steel Gantry Cranes are portable, lightweight, low-cost lifting solutions with sturdy A-frame designs. Spanco A-Series Gantry Cranes also have greater clear spans because they do not require four brace legs. You can independently adjust the length of the gantry legs to meet ever-changing lift requirements. Aluminum construction is also available.| Span B1 (ft.) | Model Number | Clear Span C (ft.) | (HUB) Height Under Beam - D1 (ft.) | Beam Size E1 | Flange Width E2 (in.) | Tread F (ft.) | Caster Dia.G (in.) | Weight (lbs.) | |
| Min. | Max. | ||||||||
| 8 | 1A0810 | 6' 11" | 7'2" | 10'2" | S6" X 12.5# | 3-3/8" | 5' 5" | 6" | 404 |
| 1A0812 | 9' 8" | 12' 8" | 428 | ||||||
| 1A0815 | 6' 10" | 12' 0" | 15' 6" | 6' 6" | 8" | 694 | |||
| 10 | 1A1010 | 8' 11" | 7'2" | 10'2" | S6" X 12.5# | 3-3/8" | 5' 5" | 6" | 429 |
| 1A1012 | 9' 8" | 12' 8" | 453 | ||||||
| 1A1015 | 8' 10" | 12' 0" | 15' 6" | 6' 6" | 8" | 710 | |||
| 12 | 1A1210 | 10' 11" | 7'2" | 10'2" | S6" X 12.5# | 3-3/8" | 5' 5" | 6" | 454 |
| 1A1212 | 9' 8" | 12' 8" | 478 | ||||||
| 1A1215 | 10' 10" | 12' 0" | 15' 6" | 6' 6" | 8" | 744 | |||
| 15 | 1A1510 | 13' 11" | 7'2" | 10'2" | S8" X 18.4# | 4" | 5' 5" | 6" | 533 |
| 1A1512 | 9' 8" | 12' 8" | 557 | ||||||
| 1A1515 | 13' 10" | 12' 0" | 15' 6" | 6' 6" | 8" | 823 | |||
| 20 | 1A2010-W | 18' 11" | 7'2" | 10'2" | W10" X 30# | 5-3/4" | 5' 5" | 6" | 904 |
| 1A2012-W | 9' 8" | 12' 8" | 928 | ||||||
| 1A2015-W | 18' 10" | 12' 0" | 15' 6" | 6' 6" | 8" | 1,194 | |||
- Adjustable Spans: Shortened for transport down narrow aisles.
- Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection
- Virtually eliminates the swaying motion common to other three-way adjustable gantry designs
- Gives greater stability while allowing the I-beam to pivot independently of the legs and to self-center over the load
- Cost effective for areas with infrequent lifts
- More available HUB and Spans, call Ace Industries Professionals at 800-733-2231
