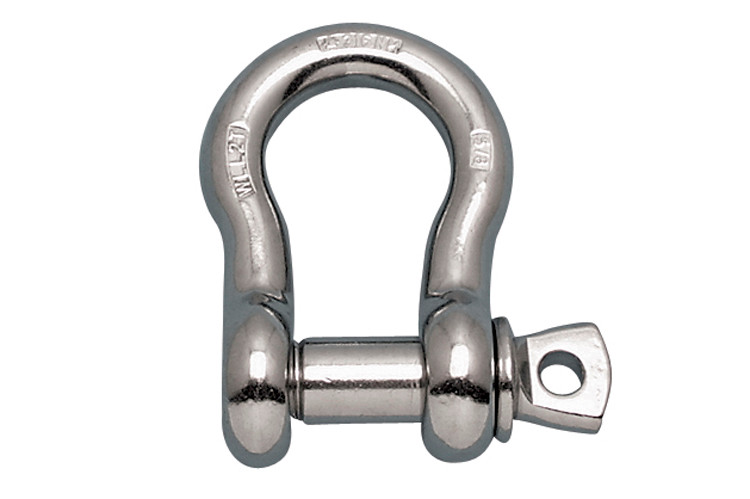

Suncor - 7/8" Anchor Shackle 316 stainless with Oversize Screw Pin
$99.80
This Anchor Shackle is made from grade 316-NM stainless steel and features an oversize screw pin. The stainless steel Anchor Shackle is ideal for salt water applications. The Anchor Shackle is primarily used to connect the anchor to the chain.
| Model Number | A - Size(in.) | B (in.) | C (in.) | D (in.) | E (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lbs.) | Weight(lbs.) |
| S0116-FS22 | 7/8 | 1.00 | 1.48 | 3.30 | 2.20 | 5.75 | 4.78 | 1.92 | 8,000 | 3.23 |
- Specifications: Fed. Spec. RR-C-271, Type IVA, Class 2 | ASME B30.26-2010 | MIL-DTL-32655
