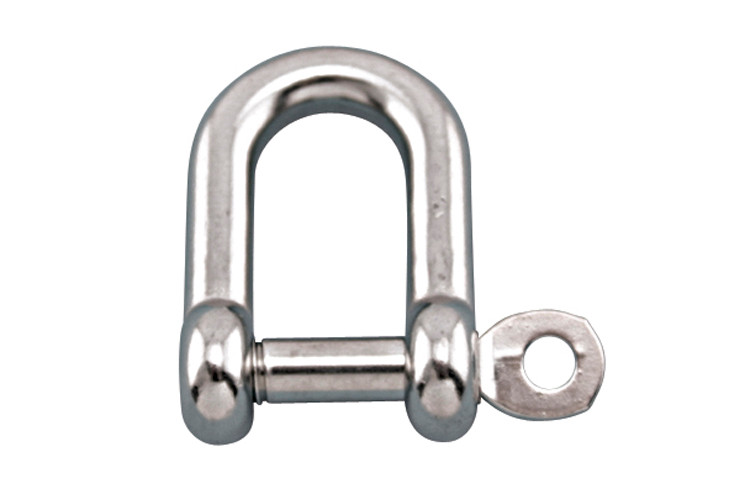

Suncor - 5/16" Straight D Shackle 316 stainless with Captive Pin
$3.99
This Straight D Shackle has a captive pin with a self-locking feature so that the pin will not back out. The pin is integral to the shackle body, it is not removable and will not fall out when open. The Straight D Shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability. Available in sizes ranging from 5/32 to 15/32 , it is ideal for industrial or marine applications because the pin can t be accidentally dropped.
| Model Number | A - Size(in.) | B (in.) | C (in.) | D (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lbs.) | Weight(lbs.) |
| S0115-CP08 | 5/16 | 0.31 | 0.62 | 1.10 | 1.77 | 1.87 | 0.61 | 1,000 | 0.122 |
