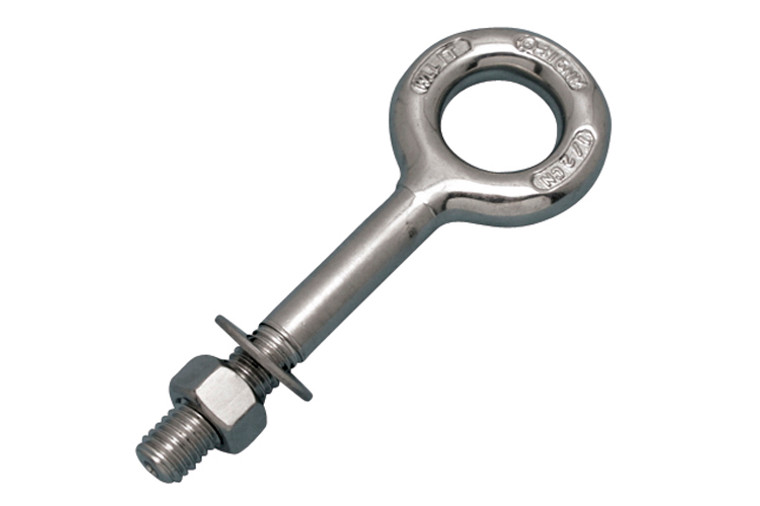

Suncor - 1" x 1-1/2" Plain Eye Bolt 316-NM Stainless Steel
$94.30
The Shoulder Eye Bolt includes one nut and one washer and is UNC thread. It is available in sizes ranging from 1/4 ³ to 1 ³ to fit every project. This eye bolt is made from grade 316-NM stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.
| Model Number | A - Size(in.) | B (in.) | C (in.) | D (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lb.) | Weight (lb.) |
| S0315-2504 | 1 | 2.00 | 1.44 | 1.38 | 4.00 | 5.75 | 1.72 | 9370 | 2.76 |
- Thread Type: UNC
- Specification: ASME B30.26
