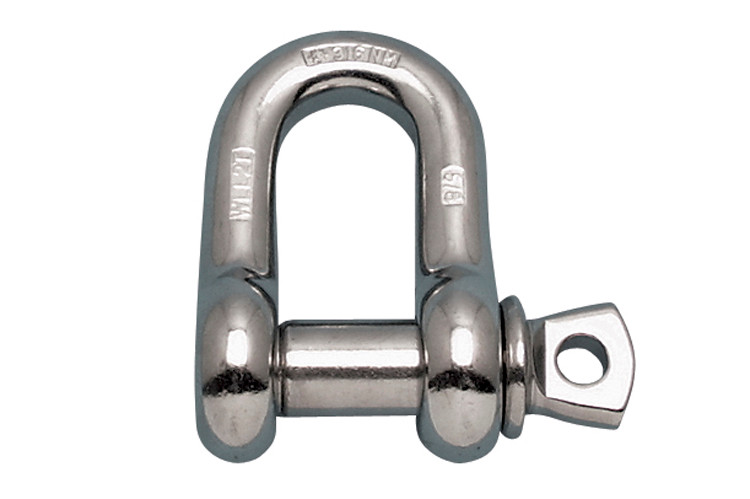

Suncor 1/4" Chain Shackle 316 stainless with Oversize Screw Pin
$4.11
The US Bolt Chain Shackle is made in the USA and features and oversize bolt. It is made from grade 316-NM stainless steel for maximum corrosion resistance. This stainless steel shackle is available in multiple sizes, making it ideal for many industrial and marine applications. It is marked to the nearest fractional ton.
| Model Number | A - Size(in.) | B (in.) | C (in.) | D (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lbs.) | Weight(lbs.) |
| S0115-FS07 | 1/4 | 0.31 | 0.46 | 0.87 | 1.48 | 1.60 | 0.60 | 1,000 | .09 |
- Specifications: Fed. Spec. RR-C-271, Type IVB, Class 2 | ASME B30.26-2010 | MIL-DTL-32655
