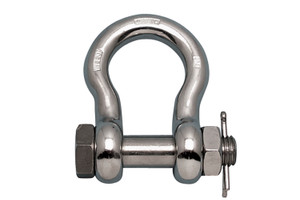

Suncor - 1/2" Bolt Anchor Shackle 316 Stainless With Oversize Bolt
$44.97
The Bolt Anchor Shackle is made from grade 316-NM stainless steel and features an oversize bolt. The Bolt Anchor Shackle with oversize bolt is ideal for salt water applications. The Bolt Anchor Shackle is primarily used to connect the anchor to the chain or anchor swivel.
| ModelNumber | A - Size(in.) | B (in.) | C (in.) | D (in.) | E (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lbs.) | Weight(lbs.) |
| S0116-SA13-US | 1/2 | 0.63 | 0.82 | 1.83 | 1.20 | 2.86 | 3.21 | 1.16 | 3,000 | 0.76 |
- Specifications: Fed. Spec. RR-C-271, Type IVA, Class 3 | ASME B30.26-2010 | MIL-DTL-32655
