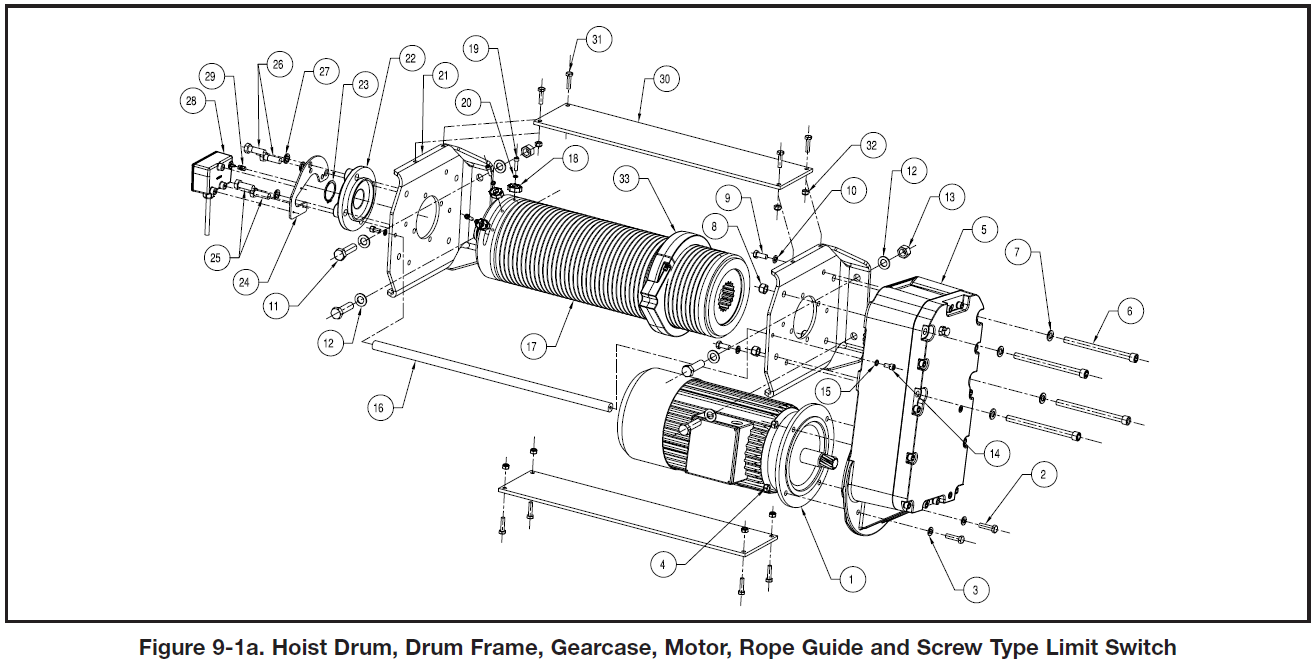

Figure 9-1a - B & C Frame : Hoist Components
-

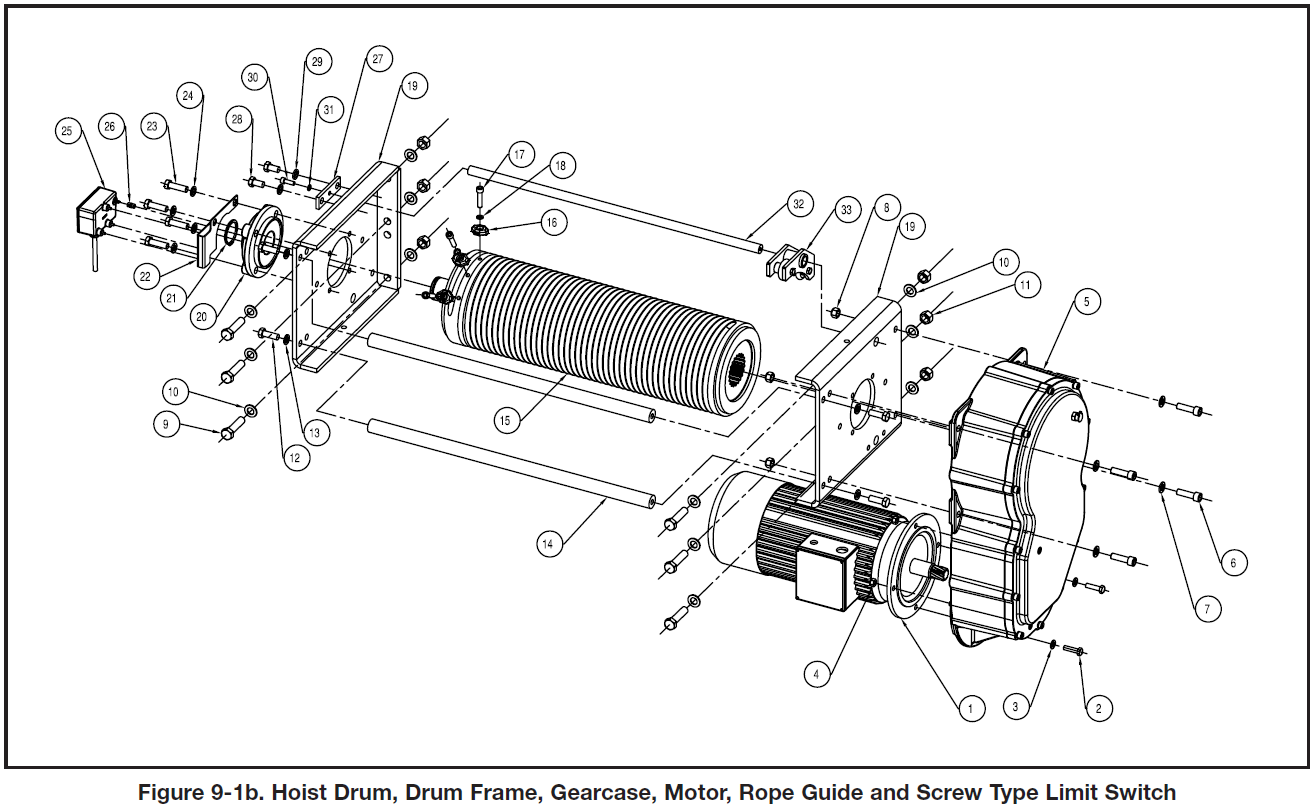

Figure 9-1b - D Frame : Hoist Components
-

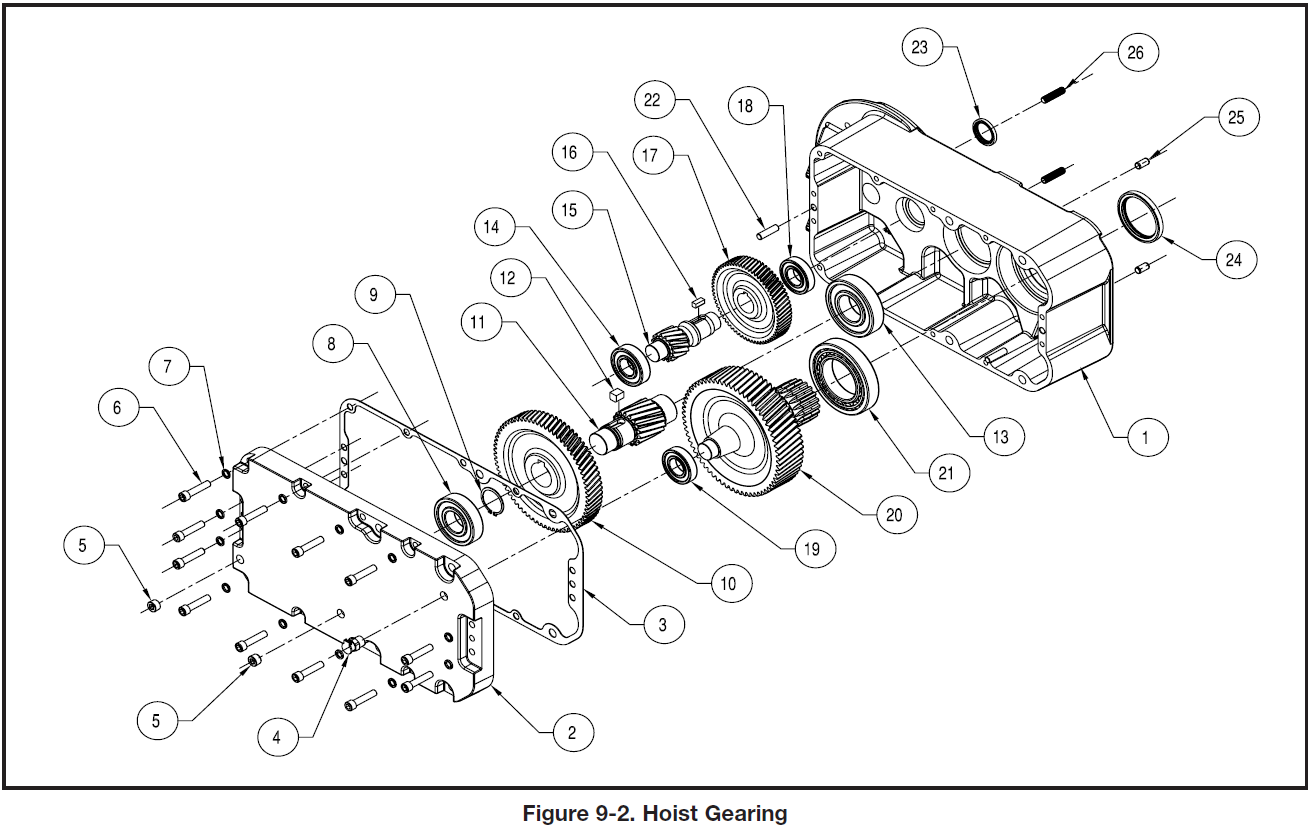

Figure 9-2 - B,C,D Frame : Hoist Gearing
-

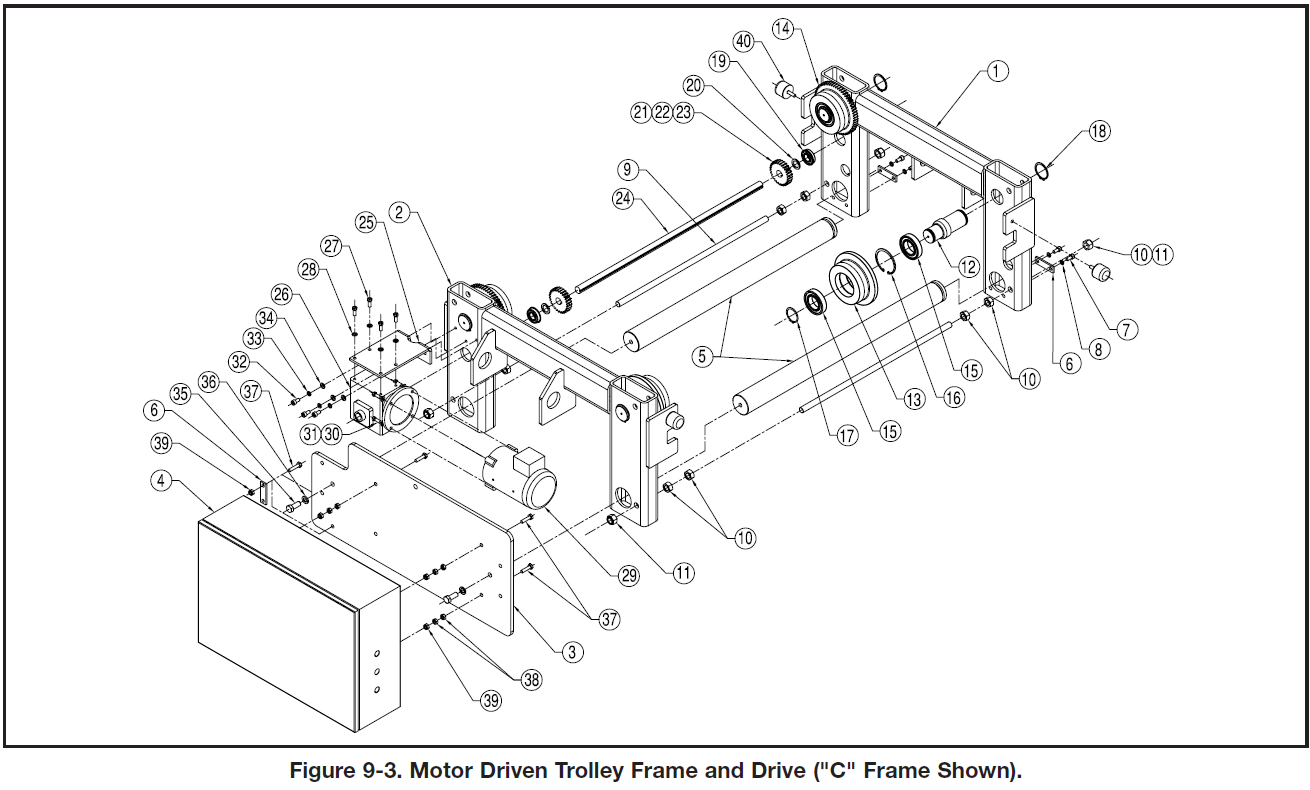

Figure 9-3 - B,C,D Frame: Trolley/Drive Components
-

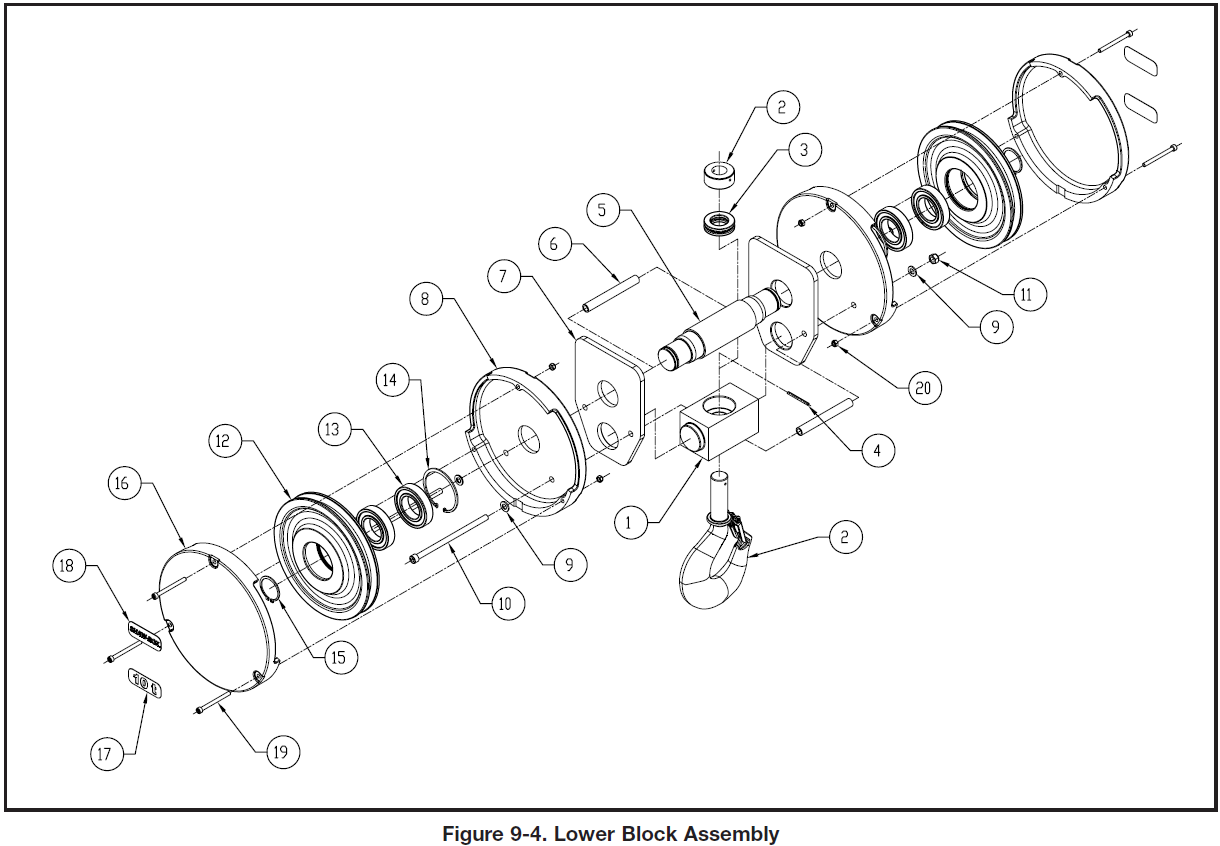

Figure 9-4 - B,C,D Frame: Lower Block
-

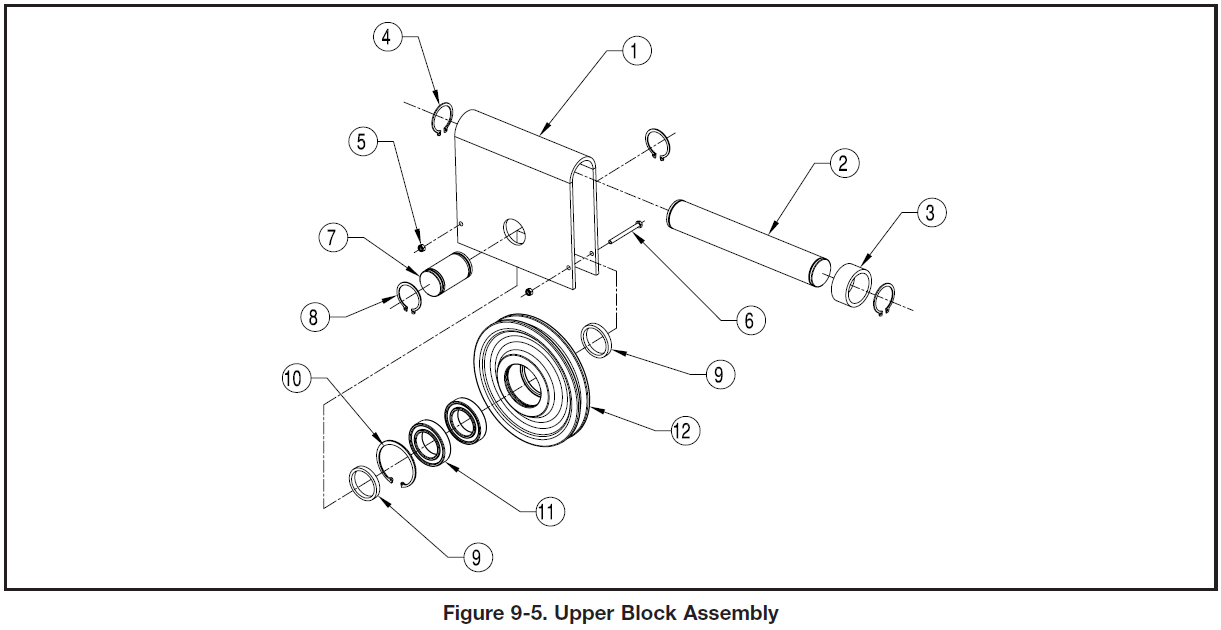

Figure 9-5 - B,C,D Frame: Upper Block
-

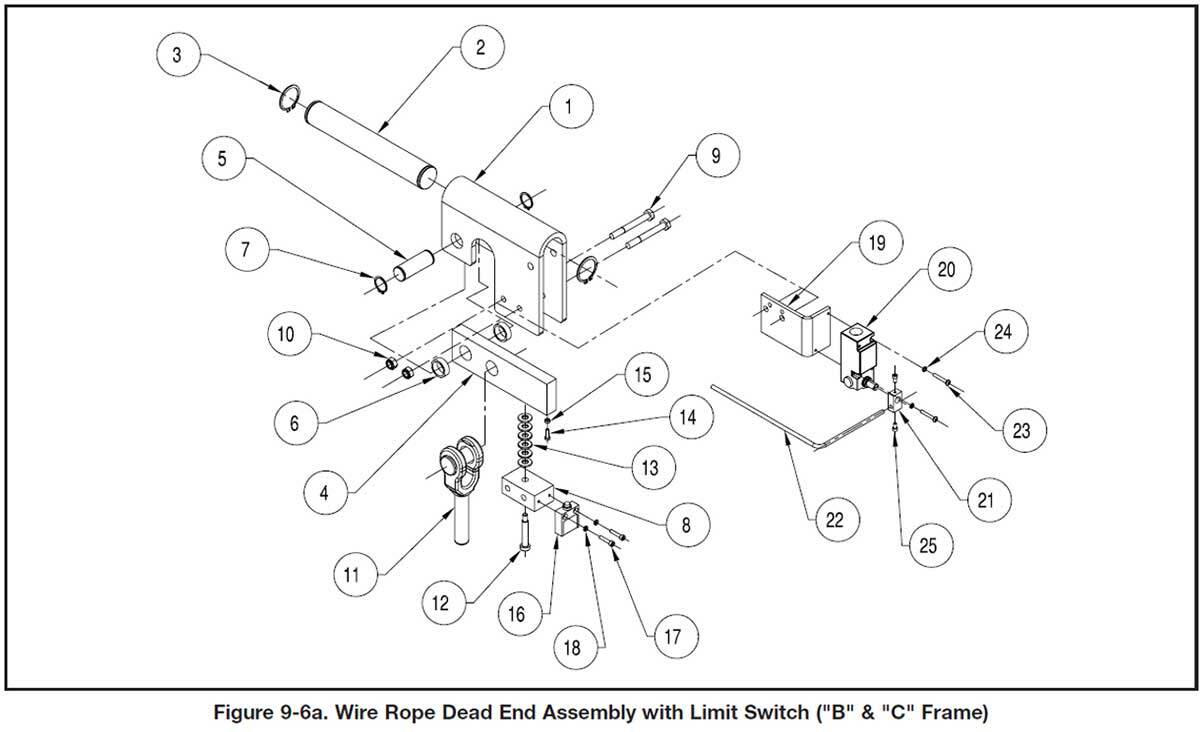

Figure 9-6a - B & C Frame: Dead End Components
-

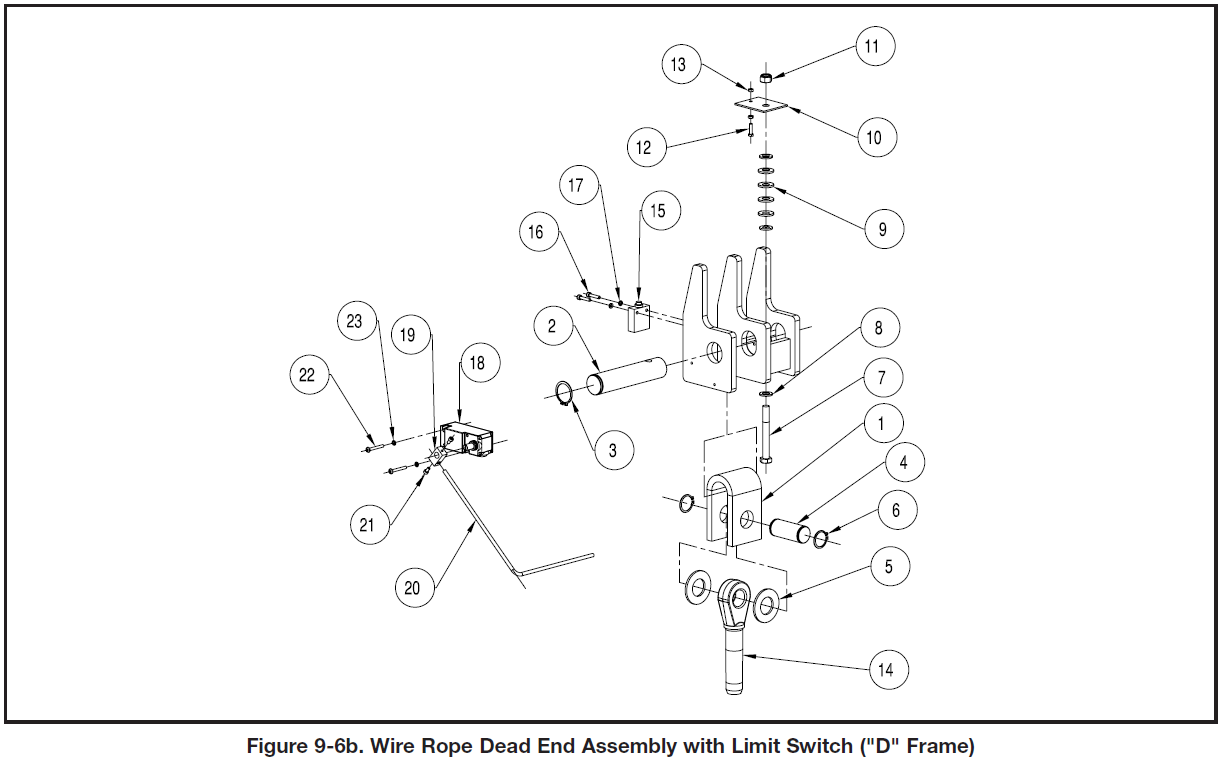

Figure 9-6b - D Frame: Dead End Components
-

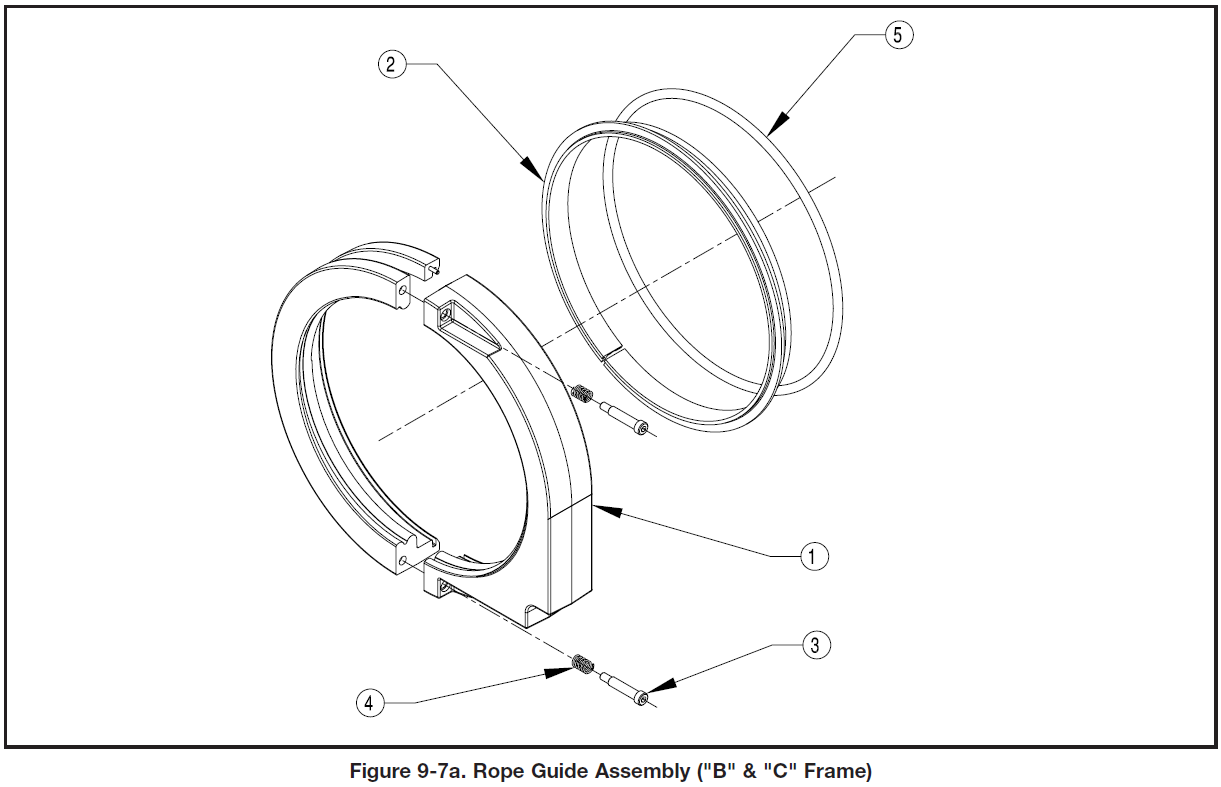

Figure 9-7a - B & C Frame : Rope Guide
-
Figure 9-7b - D Frame : Rope Guide
-

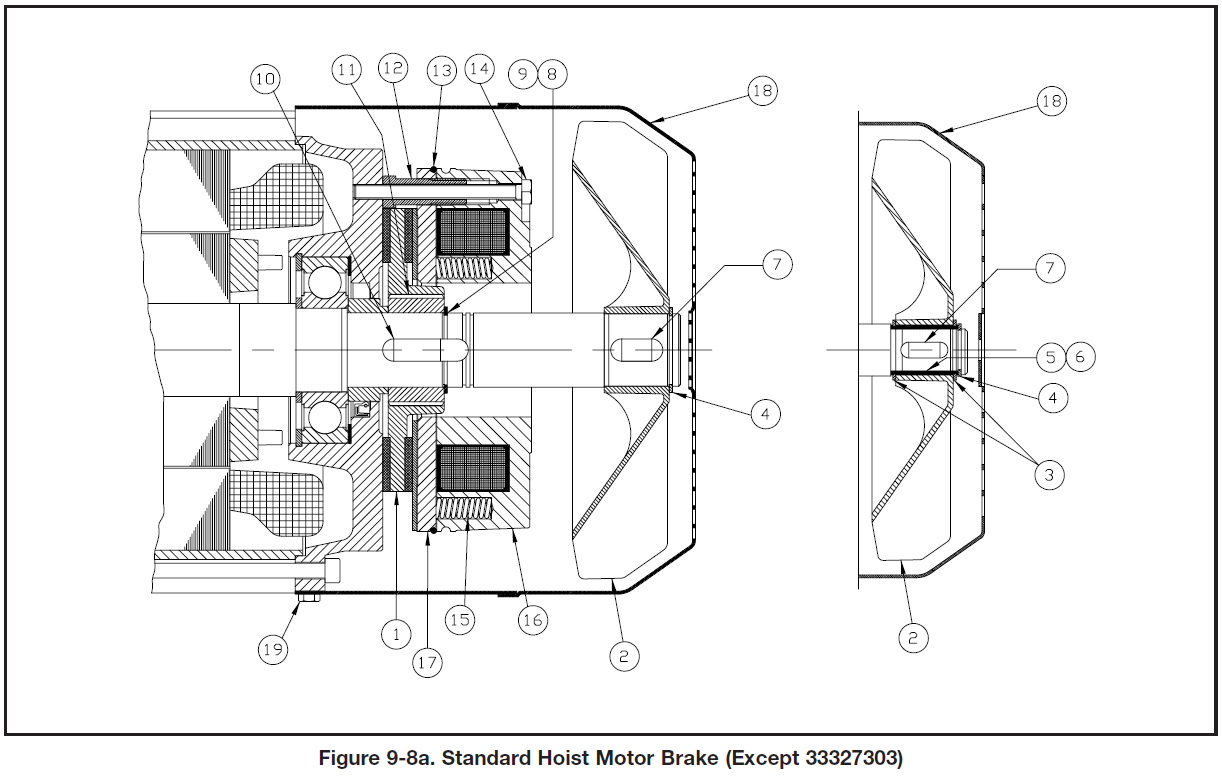

Figure 9-8a - B Frame : Hoist Brake Components
-

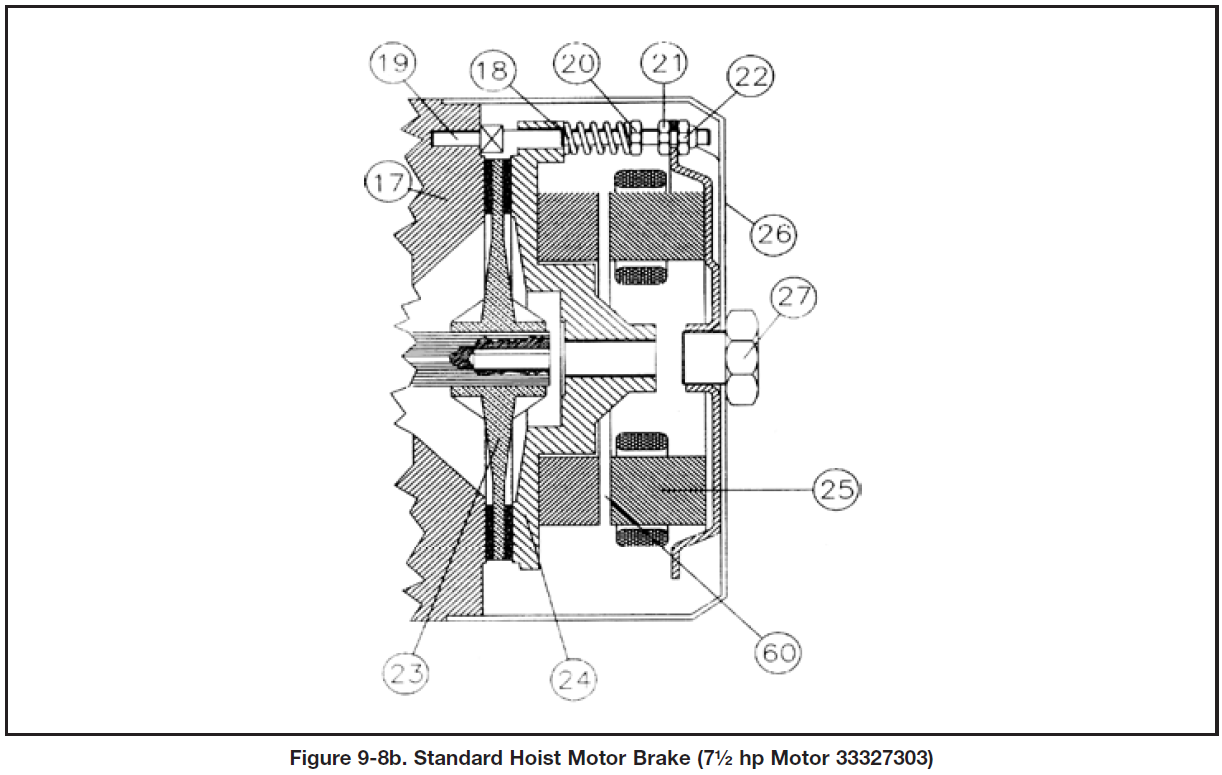

Figure 9-8b - B Frame : Hoist Brake Components
-

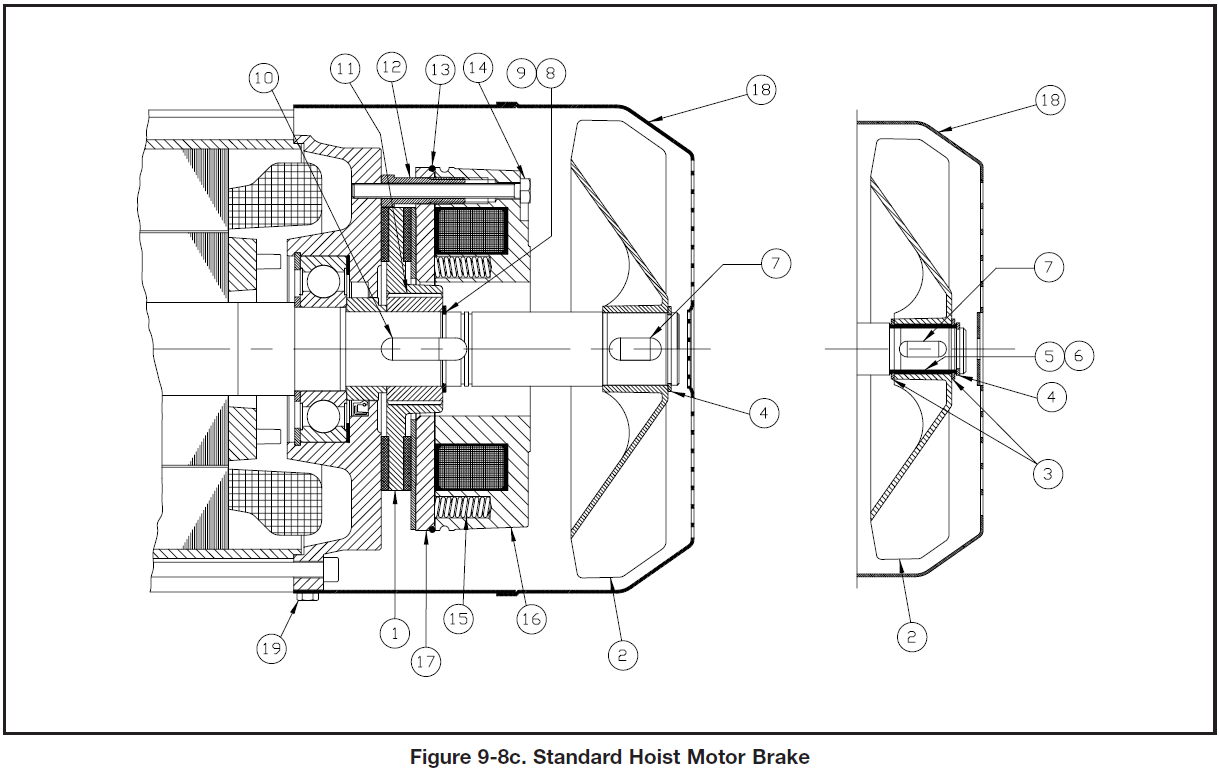

Figure 9-8c - C & D Frame : Hoist Brake Components
-
Figure 9-9 - B,C,D Frame : Outdoor SVC Motor Brake
Find the part you need by exploring the diagrams below.
Can't find the part you're looking for? Give us a call at (800) 733-2231.
