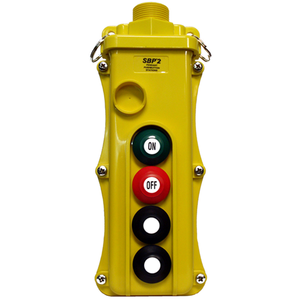

Magnetek 4-Button Pendant (2) Single-Speed With Maintained On/Off
$152.00
The Magnetek SBP2 Pendant is the lightweight pendant station for heavyweight applications. With its ergonomic, slim-line design, the pendant rests comfortably in the palm of your hand. Most models weigh under 2 pounds. The SBP2 Pushbutton Stations provide optimum control, and performance with less effort, and fatigue than traditional pendants. SBP2 Pendants pushbutton stations are available in 2, 4, 6, 8, 10, or 12 button configurations with 1, 2, or 3 speed operations. It is suitable for AC or DC applications. Designed to survive in harsh environments with high-impact resistant pendant enclosure is double insulated, chemically resistant, UL listed, and CSA approved makes the SBP2 is ideal for any industrial application.
| Switches Rated: | 3 Amp, 250 Vac, and 2 Amp, 24 Vdc |
| Operating Temperature Range: | −10°F to 150°F |
| NEMA Rated: | 1, 3, 4, 4X, and 12 |
- Cable grip clamps provide a watertight sealed connection between cable and enclosure
- Ample enclosure space for switch wiring
- An elastic, chemically resistant gasket ensures a tight seal between the two enclosure halves
- Switches are protected from internal and external contaminants
- Threaded ultra-sonic inserts are included with enclosure to prevent lost hardware during assembly
- Common circuit is pre-wired on all switches to simplify wiring
- A shrouded knock-out hole for optional pilot light or horn button
