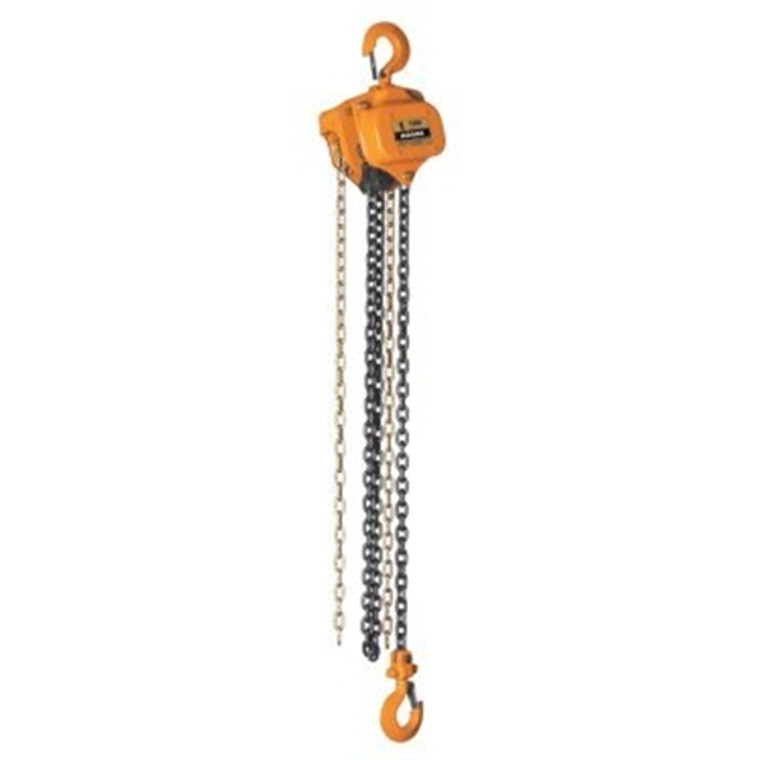

Magna CH 1-1/2 Ton Hand Chain Hoist
$284.19
Magna's hand chain hoists were designed for Rugged steel heavy duty construction hoists built for day in-day out operation. Completely repairable easily maintained hoists provide long service life. Standard lift is 10 feet.
| Brand | Magna |
| Model | CH |
| Capacity (Ton) | 1-1/2 |
| Lift (ft.) | 10 |
| Chain Falls | 1 |
| Chain Pull (lbs) | 75 |
| Chain Overhauled (ft) | 54.4 |
| Weight, Base Model (lbs.) | 31 lbs. |
- Magna CH - Simplicity, minimal number of parts to allow for simple and inexpensive repairs. Low temperature grease functions at -45deg.C (-49deg. F).
- Capacity & Lift - Designed for industrial applications from 1/2 to 2 ton capacities with a standard lift of 10 feet.
- Gears - Machined and case hardened gears with deep-cut teeth for increased strength and durability.
- Frame - Stamped steel casing for reduced weight and with high-strength hardware for increased durability. Spring and anchor system designed to facilitate easy hoist repairs and modifications.
- Brake - Considerably large brake surface area for increased performance.
- Hook - Robust, drop forged alloy steel hooks with wide throat openings for durability and versatility.
- Safety - Load tested to 150% of rated capacity. Meets ANSI Standards “CE Mark” ISO Certification
