Machining & Welding (M&W)
M & W Low Headroom, Multiple Length, Standard Lifting Beam - 4,000 lb. Working Load Limit
$1,296.00

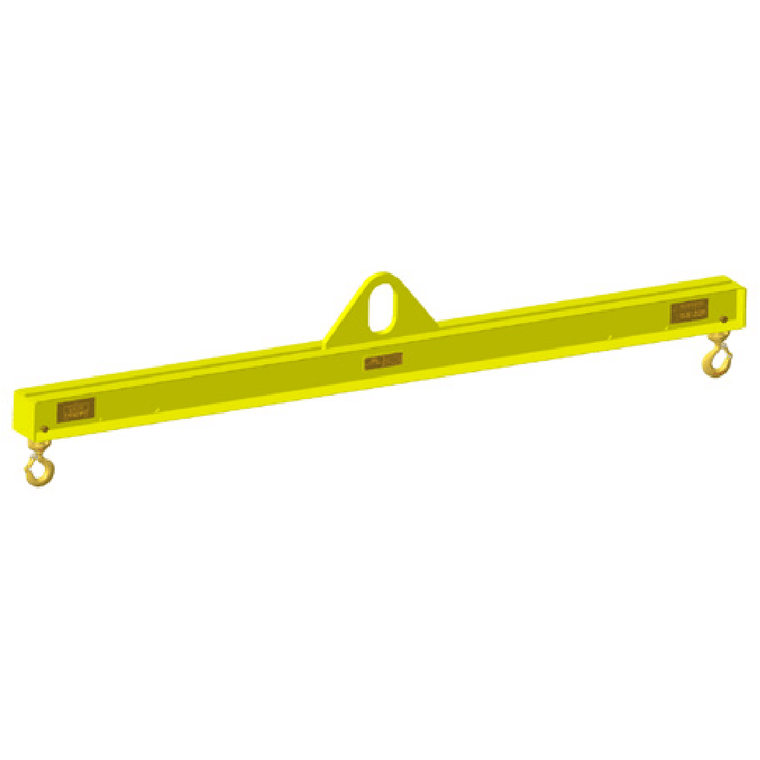

M & W Low Headroom, Multiple Length, Standard Lifting Beam - 20,000 lb. Working Load Limit
$2,892.00
The terms 'lifting beam' and 'spreader' are often used interchangeably but
they do have specific meanings and different applications. Lifting beams are
designed to be loaded in bending. A simple lifting beam will have an eye or link
on the top side to connect to the lifting machine hook and two or more lifting
points on the underside to connect to the load. They are ideal for lifting loads
which are too weak or flexible to be lifted without support.
Â
| Model Number | 12199-12284 |
| Capacity (lbs.) | 20,000 lbs |
| Color | Black |
| Beam Height | 4' Standard Lift Beam |
| Weight (lbs.) | 290 lbs. |
| Manufacturer | Machining & Welding |
- Manufactured to exceed all ASME B30.20 and OSHA regulations.
- All Lifting and Spreader beams are painted safety yellow for increased visibility.
- ALL Lifting Beams are proof loaded and shipped with certification paperwork.
- Durable construction ideally suited to jobsite or warehouse use.
- All Lifting and Spread beams are made in the U.S.A.
- All Lifting and Spread beams are machined to exacting tolerances.
- All lifting equipment individually proof loaded per OSHA requirements
- Ideally suited for ultra low headroom applications
- Item is pictured and comes standard with standard alloy swivel latch hooks.
