J.C. Renfroe Model NM - 1 Ton Rebuild Kit / Repair Kit NM-RK
$2,266.00
The construction of J.C. Renfroe products permits the installation of rebuild parts to be accomplished by qualified personnel utilizing recommended procedures for inspection and installation of each product model as recommended in the Maintenance Section of the Operator's Manuals. When necessary, worn or damaged parts may be replaced by installing replacement parts or through the use of a J.C. Renfroe Rebuild Kit which includes all parts generally replaced due to normal wear. Parts not subjected to daily operating wear are not included in the Rebuild Kit Page.

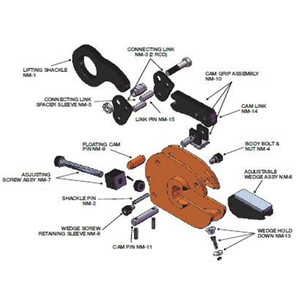

- Shackle Pin: NM-2
- Adjustable Wedge Assembly: NM-6
- Wedge Screw Assembly: NM-7
- Wedge Screw Retaining Sleeve*: NM-8
- Floating Cam Pin: NM-9
- Cam Pin: NM-11
- Cam Grip: NM-12
- Wedge Hold Down: NM-13
*two parts required per clamp
