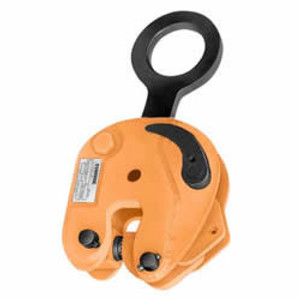

J.C. Renfroe Model J 4 Ton Lifting Clamp

SKU:

JCRJ-04.00-A-31

$2,043.00

The Model J is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90 degree arc.

Current Stock:

Quantity

Adding to cart… The item has been added

Capacity ( Tons )	A ( in. )	B ( in. )	C ( in. )	MAX. D ( in. )	E ( in. )	F ( in. )	G ( in. )	H ( in. )	J ( in. )	Weight ( lbs. )
4	3/16-1 1/4	4 3/8	11 1/2	20 1/8	3 1/2	9 1/4	4 1/2	3 1/4	1 1/2	42
4	1-2	4 3/8	11 1/2	20 1/8	3 1/2	10	4 1/2	3 1/4	1 1/2	42
4	2-3	4 3/8	11 1/2	20 1/8	3 1/2	11	4 1/2	3 1/4	1 1/2	42
4	3-4	4 3/8	11 1/2	20 1/8	3 1/2	12	4 1/2	3 1/4	1 1/2	42
