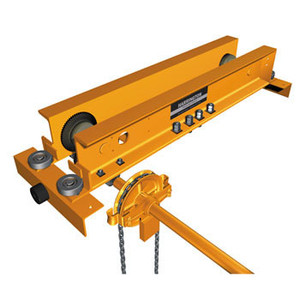

Harrington UG 2 Ton Underhung Geared End Trucks
$4,392.78
Harrington UG end trucks provide similar benefits to the UM truck, but with geared drive. Along with many important features, end truck kits include: two trucks; hand wheel drive; shaft couplers; appropriate drive shaft bearing supports based on span; rubber bumpers; and bridge beam fastener set. All trucks are fully painted. Bridge fabrication prints are also included. As a member of Crane Manufacturers Association of America (CMAA), Harrington builds UG trucks to meet current industry and regulatory codes.
| Capacity(Tons) | ProductCode | Max.Span(ft.) | WheelDia.(in.) | FlangeRangeT (in.) | OverallLengthA (in.) | RollerBaseB (in.) | WheelBaseD (in.) | Hand WheelOffsetJ (in.) | FrameWidthM (in.) | Runway Ctr.Line-Outer EdgeN (in.) | Wheel Running Surf.to Bottom of TruckR (in.) | WidthBeyond SpanX (in.) | Wheel Running Surf.to Upper Part of TruckY (in.) | Weight(lbs/pr) |
| 2 | UG-3-0235 | 35 | 4.33 | 3 - 6 | 60 | 53 | 39 | T/2 + 9.0 | T + 8.1 | M/2 | 1.5 | 11.3 - T/2 | 6.5 | 503 |
| UG-3-0245 | 45 | 82 | 75 | 61 | 640 |
- Versatile design allows hand chain wheel placement anywhere on drive shaft based on application needs.
- Upgrade easily to UM series by simply adding drives and reducers.
- Ideal for precision spotting requirements where motorized operation is not necessary.
- Longer or shorter end truck lengths are available‚ consult factory.
- Suitable for use on S or W shaped runway beams.
