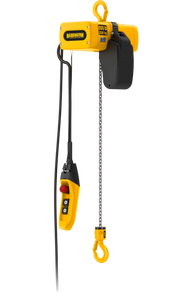

Harrington EM 1/8 Ton Mini Electric Chain Hoists
$2,022.49
Our EM Series three phase mini electric chain hoists were designed with a
state-of-the-art control system using Solid State Relay (SSR) technology and a
microcontroller (MCU) to increase the longevity of the hoist and provide superior
safety functions. These high quality, low-headroom, full-featured hoists provide
reliable performance in medium- to heavy-duty industrial settings, rental and
repair shops and garages.
| Manufacturer | Harrington |
| Model | EM |
| Capacity (Ton) | .125 |
| Lift Speed (fpm) | 32 |
| Voltage | 230/460/3/60 |
| Weight, Base Model (lbs) | 30.9 |
- UL Listed Certified and listed to UL 1340 “Standard for Hoists” and CSA 22.2 No. 33
- High Performance Motor Brake Fast acting and durable current driven electromagnetic brake. 5 year warranty.
- Unique Chain Guide Discharges chain from the side of the host body preventing tangling when winding up slack chain. Heat treated for durability.
- Forged Carbon Steel Hooks Under excessive loads will open gradually and not fracture. Ball bearings produce smooth rotation. Bottom hook will swivel 360°. Heavy-duty hook latches are standard.
- Solid State Relay Board Has no mechanical contacts for extended lifetime and microcontroller provides protection from fast reverse, overcurrent, overtemperature, and overvoltage. Includes electronic overload limiter and an LED error indicator.
- Sleek Rounded IP65 Body Compact and rugged die-cast aluminum body with no sharp edges. Superior ingress protection makes it suitable for both indoor and outdoor applications.
- Friction Clutch Rotor integrated friction clutch outside of the load path provides consistent performance over a wide temperature range.
- Grease-Packed Gearbox For demanding industrial applications.
- Nickel-Plated Load Chain Grade 80, super strength load chain with superior corrosion resistance.
