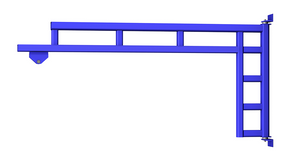

Gorbel WSJ200 - 1000 lbs. Wall Cantilever Work Station Jib Crane, 8 to 16 ft. Span
Call For Pricing - (800) 733-2231
The wall or column mounted WSJ200 crane uses tapered roller bearings at the pivot points for unsurpassed ease of rotation. The cantilevered design of the WSJ200 allows for maximum headroom. Wall Cantilever Work Station Jib Cranes are available in capacities to 1000 lb. and spans up to 16 feet.
| Span A (ft.) | Model Number | Track Series | Weight (lbs.) | B (in.) | D (in.) | G (in.) | H (in.) | T (in.) | Thrust and Pull (lbs) |
| 8 | WSJ200-150-8 | 250 | 160 | 36 | 10-3/8 | 5 | 9 | 1-1/2 | 612 |
| 10 | WSJ200-150-10 | 181 | 801 | ||||||
| 12 | WSJ200-150-12 | 216 | 48 | 13-3/8 | 12 | 750 | |||
| 14 | WSJ200-150-14 | 500 | 282 | 60 | 16-7/8 | 7-1/8 | 15 | 2-7/8 | 782 |
| 16 | WSJ200-150-16 | 330 | 932 |
- Capacities up to 1,000 lbs.
- Circular coverage standard spans to 16 feet.
- Rotation 200Àö at each pivot point
- Accessories Can be used with hook mounted lifting devices (electric, air, or vacuum)
