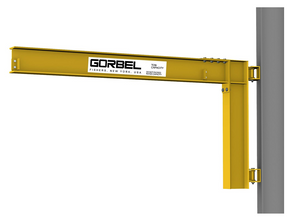

Gorbel WC200 - 1/2 Ton Wall Cantilever Jib Crane, 8 - 20 ft. Span
Call For Pricing - (800) 733-2231
The Wall Cantilever Jib Crane provides hoist coverage and 200 ° rotation for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system. This jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction. Available in spans 8 to 20 feet, and capacities from 1 to 5 ton. Prior to selecting a Wall Cantilever Jib Crane for your application, two key requirements must be met. The jib crane needs a structurally adequate wall or column to support it. There must be sufficient clearance above the boom throughout its arc.
| Capacity (Ton) | Span (ft.) | Bracket Model # | Bracket Centers- B (ft.) | Wall To Bracket- F (ft.) | Beam Model #- W | Thrush and Pull (lbs.) | Weight (lbs.) |
| 1/4 | 8 | B1 | 3 | 3-1/2" | W6 | 1760 | 247 |
| 10 | 2300 | 247 | |||||
| 12 | 2850 | 295 | |||||
| 14 | W8 | 3620 | 428 | ||||
| 16 | 4270 | 464 | |||||
| 18 | 4 | 3700 | 518 | ||||
| 20 | W10 | 4620 | 751 |
| Model # | E(in.) | F(in.) | G(in.) | Hole Dia(in.) | Bolt Dia(in.) | Bracket Thickness (in.) |
| WC-B1 | 5 | 3-1/2 | 6 | 11/16 | 5/8 | 1/2 |
- The fittings contain bronze bushings and oil-impregnated bronze thrust washers which provide for easy rotation and superior load positioning
- Fabricated steel fittings provide excellent torsional rigidity
- When the bracket center dimension is 6 or less, the mast/boom connection is welded. This provides the most economical means of installation
- When the bracket center is greater than 6 a bolted mast/boom connection is used, which enables the larger cranes to be shipped disassembled for ease of handling during shipping and installation
- Grease fittings are provided for easy field lubrication
