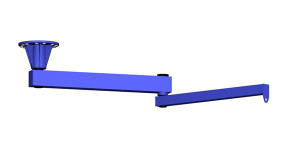

Gorbel AJ360-C 2000 lbs, Ceiling Mounted Articulating Jib Crane, 8-16 ft. Span
Call For Pricing
The AJ360-C is mounted overhead leaving nothing to disrupt workflow in the production area below. The AJ360-C can be stationary mounted or platform supported from a Gorbel ® Work Station Dual Girder Bridge Crane, which allows usage outside the normal coverage of a bridge crane or the jib to swing under obstructions. With the jib mounted to a platform, multiple work cells can be covered with just one crane and lifting device. Note, when using an AJ360-C mounted to an Offset Load Platform, spans may be limited based on your specific application.
| SpanA (ft.) | ModelNumber | Weight (lbs.) | K (in.) | T (in.) | P (in.) | H (in.) | R (in.) | S (in.) | W (in.) | BoltQty. | Anchor BoltLoad (lbs.) | OTM kip (ft.) |
| 8 | AJ360-C-250-8 | 340 | 36 | 3-5/16 | 1 | 29-7/16 | 11-13/16 | 19-15/16 | 12-3/4 | 8 | 1140 | 3.37 |
| 10 | AJ360-C-250-10 | 440 | 48 | 3-15/16 | 1-3/4 | 29-3/16 | 21-11/16 | 1590 | 4.64 | |||
| 12 | AJ360-C-250-12 | 540 | 60 | 31-7/8 | 14-1/2 | 24-3/8 | 16 | 1980 | 5.73 | |||
| 14 | AJ360-C-250-14 | 575 | 72 | 2400 | 6.88 | |||||||
| 16 | AJ360-C-250-16 | 645 | 84 | 1-1/4 | 32-3/8 | 24-7/8 | 2890 | 8.22 |
- Capacities up to 2,000 lbs.
- Circular coverage standard spans to 16 feet.
- Rotation 360Àö at each pivot point
- Accesories Can be used with hook mounted lifting devices (electric, air, or vacuum)
- Note:when mounting to an Offset Load Platform, spans may be limited based on your crane capacity. Can be mounted to a platform supported from a bridge crane to swing outside the normal coverage of a bridge crane - Contact Customer Service, limited to certain capacities and spans
