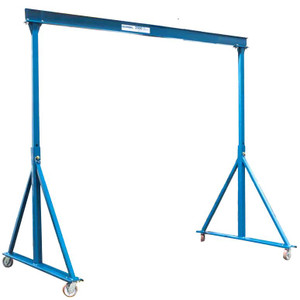

Gorbel AG 5 Ton Adjustable Height Steel Gantry Crane, 10 ft. Span
Call For Pricing - (800) 733-2231
Due to increased shipping charges, all oversized orders will be charged an LTL handling fee of $3000.
Adjustable Height Steel Gantry Cranes provide an economical way to lift materials anywhere within a facility. The casters enable you to move the gantry around your work area. This is a more cost-effective lifting solution for areas of infrequent lifts than a more expensive permanent structure. Our heavy-duty end frame design with square tubing uprights, knee braces, and channel base provides stable lifting and movement. The Adjustable Height Gantry Crane provides the most flexible lifting solution of any style gantry crane. Available in spans 8 to 30 feet, and capacities from 1 to 5 ton.| Capacity (Tons) |
Product Code |
Height Under Boom B (ft.) |
Span A (in.) |
Clear Span D (ft. in.) |
I-Beam Depth W (in.) |
Tread E (in.) |
|
| Min | Max | ||||||
| 5 | AG-5-7/10-10 | 7 | 10 | 10 | 8’ 1” | 16 | 78 |
| AG-5-12/15-10 | 12 | 15 | 10 | 7’ 10” | 16 | ||
| AG-5-17/20-10 | 17 | 20 | 10 | 7’ 10” | 16 | ||
- Square tubing uprights, knee braces, and channel base provide for stable lifting and movement
- Bolted beam to upright connection ensures safety
- Molded phenolic casters are standard and provide for easy movement
- Phenolic wheel
