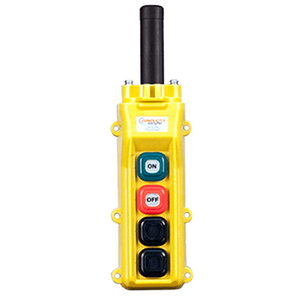

Conductix 80 Series 4-Push Button Pendant Station-XA-34218

Conductix 80 Series 4-Push Button Pendant Station Two 1-Speed, w/ Maintained On/Off

SKU:
INSXA-34218
$319.79
The Conductix-Wampfler 80 Series Push Button Pendants are available with a wide variety of switch types, options, and accessories for easy customization. You can get from 2 to 12 buttons in a standard configuration or up to 24 buttons in a duplex configuration. All Pendant Stations are fully assembled and include enclosure, operators, cable bushing, S -hook and button legend sheet. Contact your Ace Industries Professional for custom pendant stations. Jumpers included on assembled pendants only.
Current Stock:
Adding to cart… The item has been added
Details
Features
Brand Conductix
Model 80 Series
No. of Buttons 4
Switch Contacts Rated 5 A (at 120 VAC)
Operating Temperature Range 5 °F to 160 °F (-15 °C to 70 °C)
Shock Resistant up to 100 g
  • Cable Packing Gland - Furnished with bushing available in 16 sizes, insures water tight seal.
  • Buttons - Silicone rubber booted buttons. Seals out dirt and moisture. Available in red, green, and black.
  • Cable Bushing - Available in 8 sizes from .30 in. to 1.16 in.
  • Bushing Collar - Two sizes for cable diameters from .30 in. to 1.16 in.
  • Hanger Ring - For external strain relief connection. "S" hook is available for strain relief cable connection.
  • Lamp & Horn Switch - Knock-out holes in .47 in (12mm) dia. and .75 in. (19mm) dia. are available for a lamp and horn switch on 6 through 12 button enclosures.
  • Enclosure - Ergonomic design, visible safety yellow, shock and vibration resistant, rugged ABS 2 through 12 button. Two piece enclosure simplifies field wiring.
  • Fasteners - Self-captive stainless steel hardware and threaded inserts in housing to prevent thread stripping.
  • Button Legends - Standard button legends are included. Vertical, selector and mushroom legends are also available.
