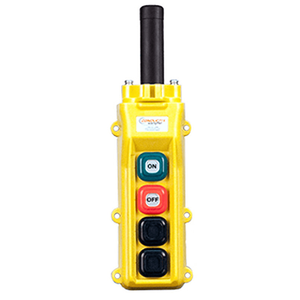

Conductix 80 Series 4-Push Button Pendant Station Four 3-Speed
$505.85
The Conductix-Wampfler 80 Series Push Button Pendants are available with a wide variety of switch types, options, and accessories for easy customization. You can get from 2 to 12 buttons in a standard configuration or up to 24 buttons in a duplex configuration. All Pendant Stations are fully assembled and include enclosure, operators, cable bushing, S-hook and button legend sheet. Contact your Ace Industries Professional for custom pendant stations. Jumpers included on assembled pendants only.
| Brand | Conductix |
| Model | 80 Series |
| No. of Buttons | 4 |
| Switch Contacts Rated | 5 A (at 120 VAC) |
| Operating Temperature Range | 5 °F to 160 °F (-15 °C to 70 °C) |
| Shock Resistant | up to 100 g |
- Cable Packing Gland - Furnished with bushing available in 16 sizes, insures water tight seal.
- Buttons - Silicone rubber booted buttons. Seals out dirt and moisture. Available in red, green, and black.
- Cable Bushing - Available in 8 sizes from .30 in. to 1.16 in.
- Bushing Collar - Two sizes for cable diameters from .30 in. to 1.16 in.
- Hanger Ring - For external strain relief connection. "S" hook is available for strain relief cable connection.
- Lamp & Horn Switch - Knock-out holes in .47 in (12mm) dia. and .75 in. (19mm) dia. are available for a lamp and horn switch on 6 through 12 button enclosures.
- Enclosure - Ergonomic design, visible safety yellow, shock and vibration resistant, rugged ABS 2 through 12 button. Two piece enclosure simplifies field wiring.
- Fasteners - Self-captive stainless steel hardware and threaded inserts in housing to prevent thread stripping.
- Button Legends - Standard button legends are included. Vertical, selector and mushroom legends are also available.
