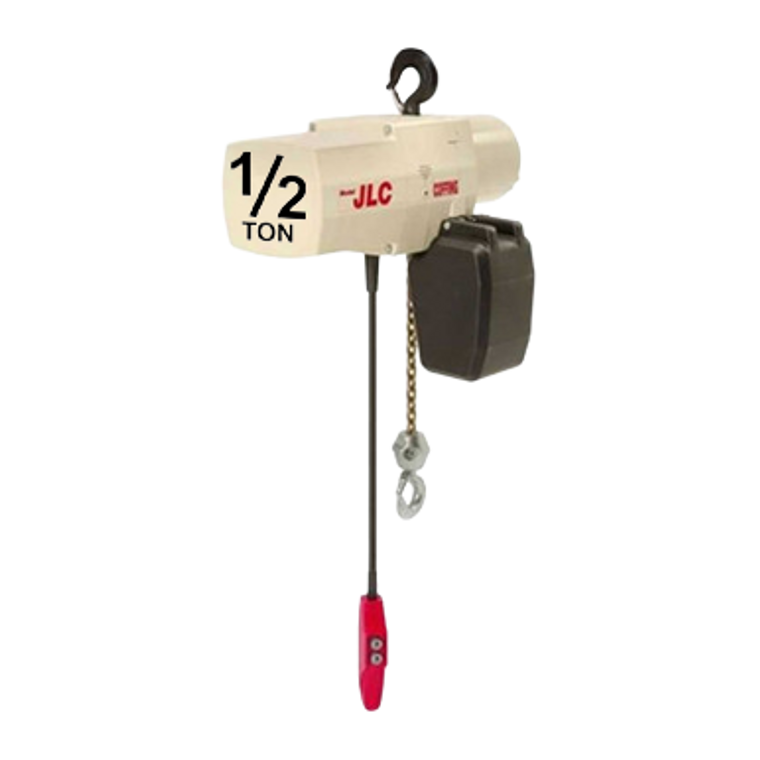

Coffing JLC 1/2 Ton Electric Hoist - 32 fpm, Single or Three Phase
$3,019.10
The Coffing JLC Electric Chain Hoist is a heavy-duty, high-performance hoist designed to meet the rigorous demands of industrial applications. It is often referred to as an exceptional bang-for-your-buck hoist, as it balances cost, durability, and power, making it a favorite for general manufacturing and workshop applications. Available in capacities from 1/8 to 2 tons, this compact yet powerful hoist features a multiple disc motor brake, an overload clutch, and a chain end stop for enhanced safety and reliability.
Engineered for durability, the JLC hoist features a 5-pocket load sheave that increases chain engagement by 25% compared to conventional 4-pocket designs, ensuring smoother lifting and reduced chain wear. The hoist is equipped with an oil bath transmission and precision-machined alloy steel gears for longer, quieter operation. Adjustable upper and lower limit switches, featuring brass nuts for superior repeatability, prevent over-travel and improve load control. For ease of installation and maintenance, the JLC hoist incorporates a compact aluminum frame and a removable panel plate for quick access to motor leads and controls.
Built for high efficiency and low maintenance, the Coffing JLC Electric Chain Hoist is a great solution for manufacturing, warehousing, and heavy-duty lifting applications.
Chain Container is INCLUDED up to 20ft lift.
|
Brand |
Coffing JLC |
|
Model |
JLC1032 |
|
Capacity (Tons) |
1/2 |
|
Duty Cycle |
Industrial Duty (HMI H4) |
|
Lifting Speed (FPM) |
32 |
|
Motor (HP) |
1 |
|
Number of Chains |
1 |
|
Power Supply Voltage |
115/1/60 or 230/460/3/60 |
|
Control Type |
Magnetic Contactor, Single Speed |
|
Weight, Base Model (lbs) |
92 |
- Industrial Duty Design - Coffing JLC exceeds h2 requirements, engineered for industrial duty performance
- Five-Pocket Load Sheave - Increases chain and sheave engagement 25% over hoists with conventional four-pocket sheaves. Provides smoother lifting and reduces chain wear.
- Multiple Disc Motor Brake - Heavy duty, direct acting design for positive load spotting and holding
- Hoist Motor - Finned aluminum housing and Class F insulation for longer life.
- Mechanical Overload Protection - Protects hoist, operator and supporting structures from damaging overloads, chain jamming and reverse phasing.
- Limit Switches - Adjustable to regulate upper and lower load travel. Brass nuts standard for improved repeatability and chain positioning
- Pushbutton Station - NEMA 3R (weather resistant) standard. Ergonomic design fits operator’s hand for thumb for two-handed operation. 24 Volt control for operator safety (115 Volt control available upon request)
- Control Panel - Easy access to controls and motor leads for changing voltage on dual-voltage motors or performing hoist maintenance. Connection wires are numbered to assist maintenance
- Oil Bath Transmission - Precision machined alloy steel gears run in oil bath for longer, quieter operation
- Frame - Compact aluminum housing for portability and ease of installation
- Chain End Stop - Fits below dead end link on lifting chain for added measure of safety
- Lifetime Warranty - Coffing JLC hoist workmanship backed by manufacturer’s lifetime warranty
