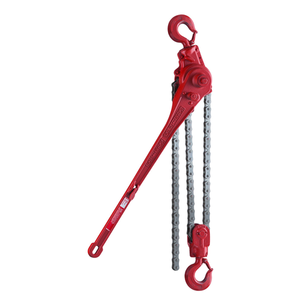

Coffing G 3/4 Ton Roller Chain Lever Hoist, Single Pawl-AG
$982.00
Coffing G Series ratchet lever hoists are efficient and durable, featuring malleable iron roller chain. Roller chain, often referred to as bicycle chain, can be spliced to create longer lifts and can handle higher capacities than coil chain. G Series hoists are ideal for utility transmission and distribution work.
|
Brand |
Coffing |
|
Model |
G Series |
|
Model Number |
AG |
|
Capacity |
3/4 Tons / 1,500 lbs. |
|
Avg. Handle Effort (lbs) |
56 |
|
Standard Lift (in) |
56 – 1/2 |
|
Number of Chain(s) |
1 |
|
Headroom (in) |
13 |
|
Handle Length (in) |
18 – 3/4 |
|
Weight, Base Model (lbs) |
14 |
- Lift Capacity - Rated loads up to 3/4 tons, for standard lifts.
- Construction - The riveted, malleable iron construction makes the unit tamper resistant, and durable. Free-chaining mechanism allows quick and easy take-up and positioning of slack chain. Hoist will not free chain when under load.
- Safety Feature - Handle stops prevent handle from spinning if it is accidently released by the operator. 360° Swivel Hooks are equipped with safety latches for positive load engagement. Meets or exceeds minimum 4:1 design factor and all requirements of ASME/ ANSI Standard B-30.21. All units tested at 125% of rated load.
- Rigging - Single or double locking ratchet and pawl design provides multiple rigging options. Hoist can lift, pull, or bind. Double pawl design requires only half-stroke of the lever and is ideal for working in close quarters, double-pawl model numbers end in “i”.
- Easy to Operate - Coffing G Series Come Along can be operated from either side and will work in any position with equal efficiency. The free chain feature allows for easy positioning and set-up. Chain stays securely in place under load. The lift/reach can be adjusted by adding or removing links.
- Warranty - Lifetime Manufacturers Warranty.
