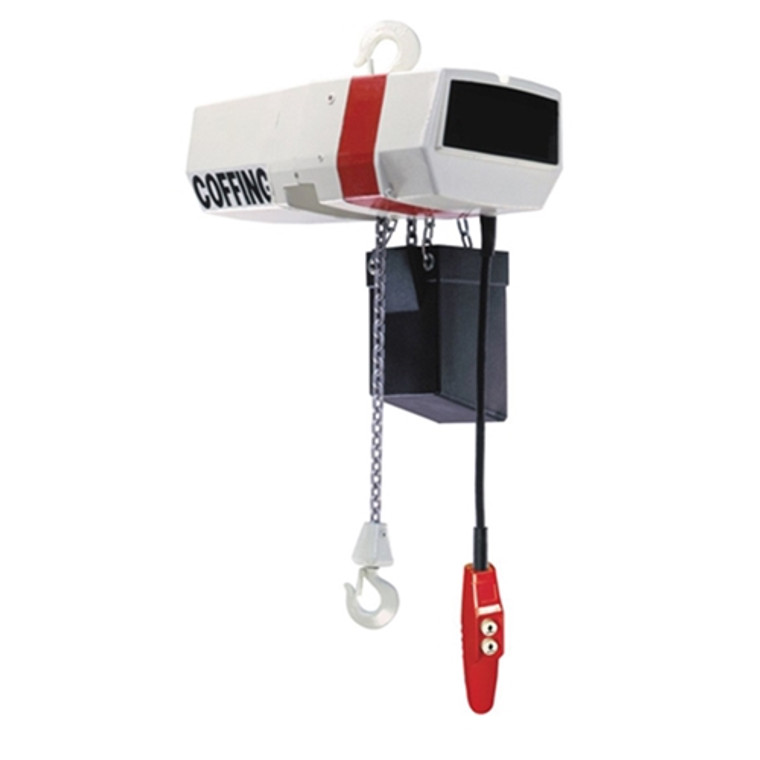

Coffing EC-V 1 Ton, Electric Chain Hoist, 24 fpm-VFD
$10,710.00
Coffing EC-V Models € ” Redefining Lifting € ” now feature a Variable Frequency Drive. The compact size of the drive unit allows neat and complete placement under the cover of the hoists. The Coffing On EC-V Models, this new option enhances the standard hoist € ™s features: mechanical load brake, motor brake and overload clutch. The VFD allows for unsurpassed load-spotting and inching capability. It offers additional speed flexibility that standard 2-speed motors cannot offer. The soft starting and stopping of the unit is perfect for delicate applications and reduces the daily wear and tear on the hoist. Variable Frequency Drives can also be externally mounted to Motorized Trolley Units.
| Brand | Coffing |
| Model | EC-V Series |
| Model # | ECV2032-10 |
| Capacity (Ton) | 1 |
| Standard Lift (ft) | 10 |
| Number of Chain(s) | 1 |
| Headroom (in) | 23 |
| Lifting Speed (fpm) | 24 fpm |
| Motor (HP) | 2 |
| Voltage | 230V/3/60 460V/3/60 |
| Weight (lbs) | 315 |
- Rated loads from Rated loads from 1/4 to 5 Tons, with lifting speed of 5 to 64 feet per minute depending on the capacity. Standard lifts of 10, 15, and 20 with other lifts available. Standard push-button drop is 4-feet less than lift.
- Built in compliance with ASME/ANSI B30.16.
- The standard 2-step buttons allow the operator to increase and maintain the lifting or lowering speeds. The optional 3-step buttons allow the operator to increase, maintain, or decrease the lifting or lowering speeds without interruption.
- Lifetime Warranty
- Made in the USA
