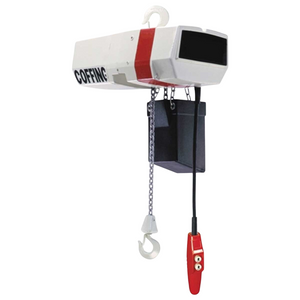

COFFING EC 4 Ton Electric Hoist 12 fpm -Three Phase
$9,260.30
The Coffing EC Electric Chain Hoist is engineered for heavy-duty industrial applications, offering reliable performance and enhanced safety features. Its robust construction includes load-bearing housings made of ductile iron for maximum strength, while non-load-bearing housings are crafted from cast aluminum alloy to minimize weight.
The EC model incorporates a mechanical load brake, motor brake, and overload clutch as standard safety features, ensuring secure and efficient operation. Additionally, the five-pocket load sheave design provides smoother lifting, reduces chain wear, and increases chain and sheave engagement by 25% over conventional four-pocket sheaves. Note that the chain container is sold separately.
| Brand | COFFING |
| Model | EC8012-10 |
| Capacity (Ton) | 4 |
| Lift (ft) | 10, 15, 20 |
| Lifting Speed (FPM) | 12 |
| Motor (HP) | 3 |
| Number of Chains | 2 |
| Power Supply Voltage | 230/460V |
| Control Type | Magnetic Contactor, Single Speed |
| Weight, Base Model (lbs.) | 365 lbs. |
- Capacities & Lifts - Rated loads from 1/4 to 5 Tons, with 10, 15, and 20-foot standard lifts. Other lifts available. Standard push button drop is 4-feet less than lift.
- Voltage & Motor Options - 230/460, 208, 220/380, 575 - three phase. 60 hertz standard, 50 hertz available. Two-speed motors available (3 to 1 speed ratio).
- Suspension Options - Rigid or swivel top hook, lug, plain, and motorized trolley available.
- Small Frame Design - Features housings of cast aluminum alloy construction for minimum weight. Engineered and designed for use with motors up to 1 HP.
- Large Frame Design - Features load bearing housings of ductile iron construction for maximum strength. Non-load bearing housings of cast aluminum alloy for minimum weight. Engineered and designed for use with higher torque 2 and 3 HP three phase motors.
- Durable Construction - Built in compliance with ASME/ANSI B30.16 and CSA standards.
- LIFETIME WARRANTY
