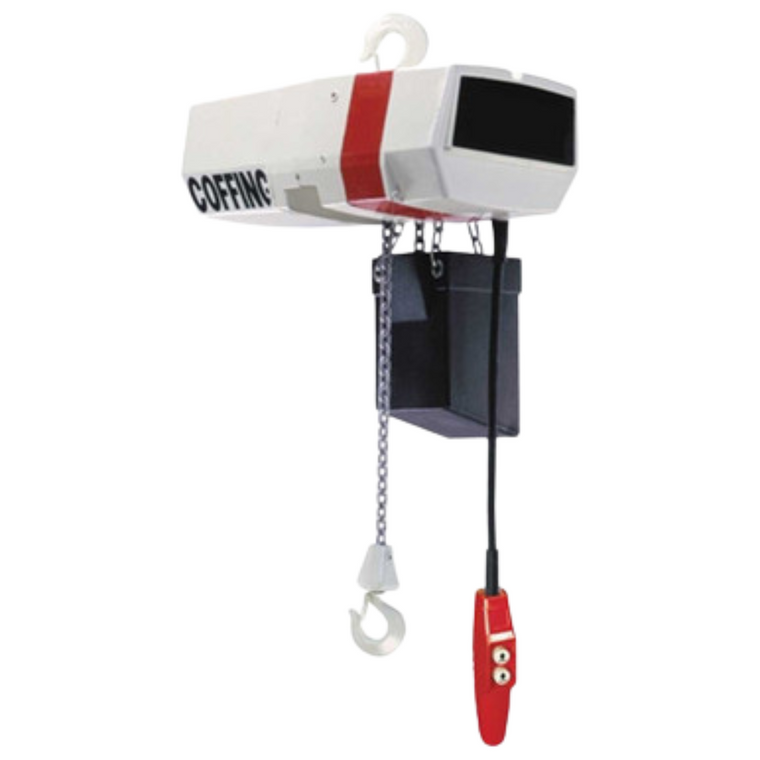

COFFING EC 1/2 Ton Electric Hoist 9 fpm -Single or Three Phase
$3,427.20
Coffing EC Hook & Lug Suspension Models are high performance hoists engineered for heavy duty industrial service. Designed for safety, the EC incorporates mechanical load brake, motor brake, and overload clutch as standard.
| Brand | COFFING |
| Model | EC1009-10 |
| Capacity (Ton) | 1 / 2 |
| Lift (ft.) | 10 |
| Lifting Speed (FPM) | 9 |
| Motor (HP) | 1 / 4 |
| Number of Chains | 1 |
| Power Supply Voltage | 115/1/60 or 230/460/3/60 |
| Control Type | Magnetic Contactor, Single Speed |
| Weight, Base Model (lbs.) | 110 lbs. |
- Capacities & Lifts - Rated loads from 1/4 to 5 Tons, with 10, 15, and 20-foot standard lifts. Other lifts available. Standard push button drop is 4-feet less than lift.
- Voltage & Motor Options - 115/230, 208 - single phase; 230/460, 208, 220/380, 575 - three phase. 60 hertz standard, 50 hertz available. Two-speed motors available (3 to 1 speed ratio).
- Suspension Options - Rigid or swivel top hook, lug, plain, and motorized trolley available.
- Small Frame Design - Features housings of cast aluminum alloy construction for minimum weight. Engineered and designed for use with motors up to 1 HP.
- Large Frame Design - Features load bearing housings of ductile iron construction for maximum strength. Non-load bearing housings of cast aluminum alloy for minimum weight. Engineered and designed for use with higher torque 2 and 3 HP three phase motors.
- Durable Construction - Built in compliance with ASME/ANSI B30.16 and CSA standards.
- LIFETIME WARRANTY
