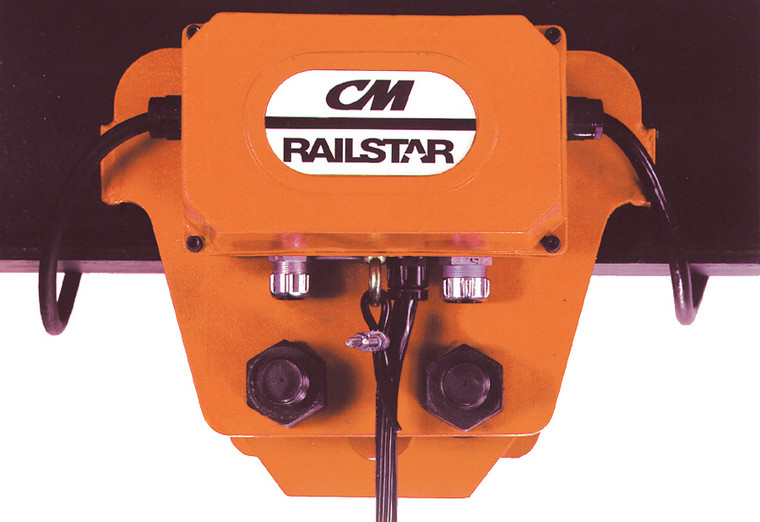

CM Railstar 1/8 to 2 Ton, Motor Driven Trolley
$2,831.50
The CM RailStar Motor Driven Trolley features a durable structure and smooth motor operation for optimal usage. Universal use with any hook suspended single speed hoists that are equipped with a reversing contactor. Steel spur gearing for optimum strength and smooth operation. Low maintainance, lifetime lubricated double row ball bearings for high efficiency. Built to last and outperform other powered trolleys on the market.
| Capacity (Ton) |
Product Code |
Power Supply |
Phase | Travel Speed (fpm) |
Motor (HP) |
Std. Beam Height (in) |
Std. Flange Width (in) |
Weight (lbs.) |
| 1/8 - 2 | 0300 | 230/460 | 3 | 78 | 1/3 | 6 to 18 | 3-3/8 to 6 | 108 |
| 1/8 - 2 | 0301 | 115-1-60 | 1 | 78 | 1/3 | 6 to 18 | 3-3/8 to 6 | 107 |
| A (in.) |
B (in.) |
C ** (in.) |
D (in.) |
E (in.) |
F ** (in.) |
G ** (in.) |
H ** (ft.) |
J (in.) |
K (in.) |
Single Phase L |
Three Phase L |
M ** (in.) |
N ** (in.) |
P ** (in.) |
Q ** (in.) |
R (in.) |
S (in.) |
T ** (in.) |
| 12-3/4 | 6-3/8 | 4-13/16 | 3-9/16 | 2-9/16 | 4-3/4 | 6 | 17 | 7-1/2 | 4-1/8 | 12-3/4 | 11-7/8 | 1-1/2 | 3/8 | 1-7/16 | 5-1/8 | 1/2 | 1-1/16 | 8-7/8 |
- Fits wide range of beam sizes for maximum versatility
- Universal use with any hook suspended single speed hoists that are equipped with reversing contactor
- Steel spur gearing for optimum strength and smooth operation
- Durable hardened cast iron trackwheels that operate on standard S-beams or flat flanged beams
- Lifetime lubricated double row ball bearings for high efficiency, low maintenance.
- Cast iron control enclosure
- Four-button control station included for operating single speed hoist. Drop proportioned to 20' lift
- Steel plate side frames
- Cast iron control enclosure
- Four-button control station included for operating single speed hoist. Drop proportioned to 20' lift
- 115 volt control circuit on 1 phase units 48 volt control circuit on 3 phase units
- Trolley guards standard
- One-year warranty
- Metric rated
- Imported
