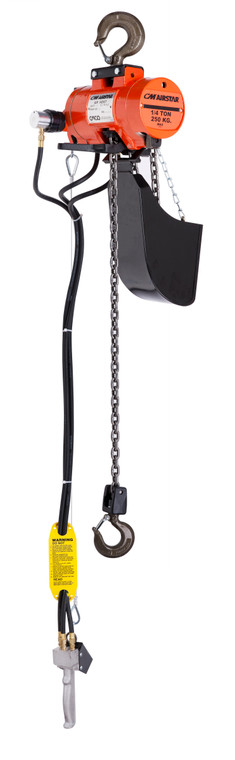

CM AirStar 1/4 Ton Air Hoist 65 fpm, Pendant Controlled - 7400D
$4,336.50
Made in the USA
These precision-built chain hoists are available in 1/4, 1/2 and 1 ton capacities, with either pull cord or pendant throttle control. A variety of options, including either link or roller type load chains, hook suspension for easy portability or lug suspension for close head-room arrangements, and spark resistant link chain models make the Airstar adaptable to almost any application.
|
Brand |
CM |
|
Model |
Airstar |
|
Capacity (Tons) |
1/4 |
|
Lifting Speed (FPM) |
65 |
|
Air Consumption |
48 SCFM at 90 PSI |
|
Control |
Pendant |
|
Number of Chains |
1 |
|
Weight, Base Model (lbs) |
46 |
- Pull cord control provides a lightweight, economical hoist for accurate control of loads
- Pendant throttle control hoists offer ergonomic one-handed controls, for ease of operation
- Inlet air swivel with built-in strainer provides free hoist movement
- Aluminum frame and end cover contributes to the lightweight, easily portable, and rugged design
- Heavy duty shoe type brake is a proven design for stopping and holding loads in heavy duty applications
- External adjustment screws for decreased lift and lower speeds
- External brake adjustment
- Limit stops prevent over-travel in upper and lowering directions
- Equa-torque gearing of alloy steel, heat treated spur gears is accurately machined to provide a close meshed, compact gear reduction
- Eight-vane motor provides high torque, smooth starting and excellent control
- Tapped exhaust port 1/2 NPTF. for CLEAN applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation
