CM 635 Series 3 Ton Low Headroom Trolley
$1,073.10

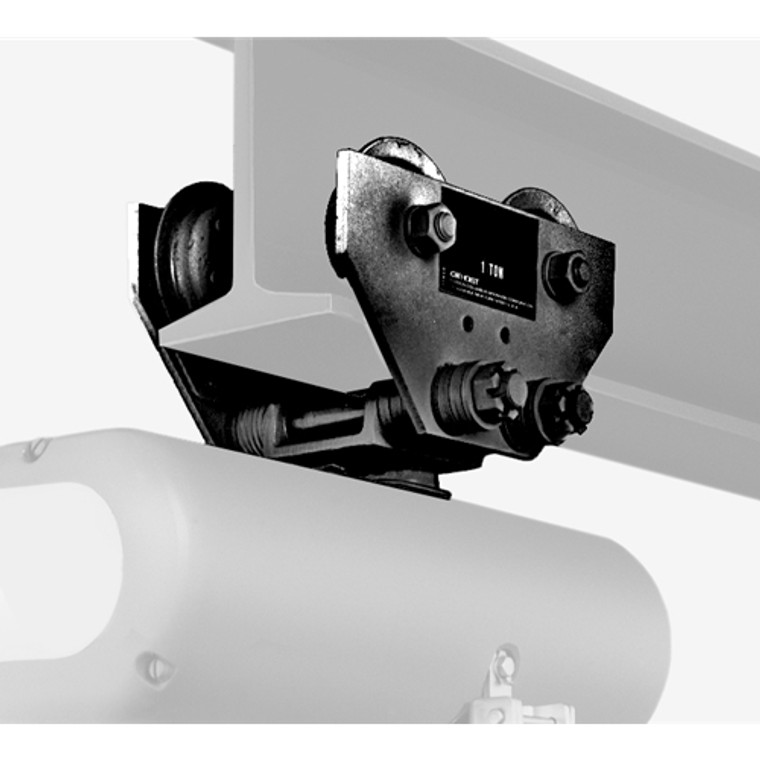

The CM 635 Low Headroom Trolley is a Manual Driven Trolley was designed to be utilized with the CM Lodestar where versatility and strength are key components. The Trolley fits American Standard S-beams with flange widths from 2 5/8" to 6", depending on trolley selected.
|
Brand |
CM |
|
Model |
635 |
|
Capacity (ton) |
3 Ton |
|
Flange Width |
4" to 5-5/8" |
|
For Models |
R - RRT |
|
Control Type |
Manual |
|
Minimum Radius Curve |
30" |
|
Base Model Weight |
80 lbs. |
- Four-button control station included for operating single speed hoist. Drop proportioned to 20' lift
- Fits wide range of beam sizes for maximum versatility
- Steel plate side frames
- Steel spur gearing for optimum strength and smooth operation
- Universal tread hardened trackwheels that operate on standard S-beams or flat flanged beams
- Lifetime lubricated double row ball bearings for high efficiency, low maintenance
- 115 volt control circuit
- For use with lug suspended Lodestar electric chain hoists
- Lifetime warranty
