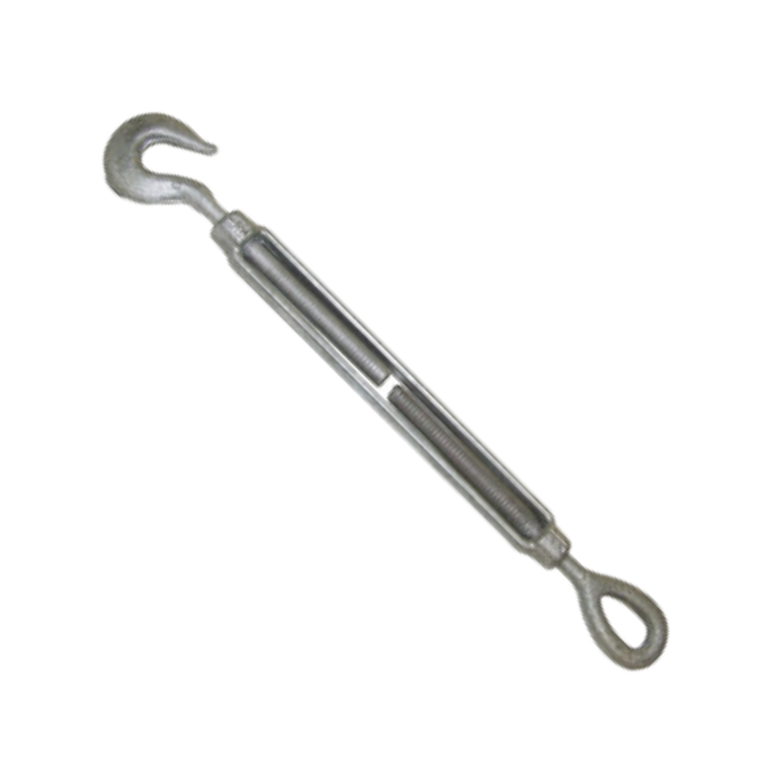

CM 2,250 WLL - 5/8 x 6" Hook & Eye Galvanized Turnbuckle 1006HE
$59.05
Turnbuckles provide easy means for tensioning, loosening and removing chain and rope load lines. CM Turnbuckles are forged then hot dip galvanized. All meet Federal Specification FF-T-791b Type 1, Form 1. CM Turnbuckles can be used to apply tension to wire rope or cable. Composed of a forged body and two end fittings.End fittings can be eyes, jaws, or hooks. Must only be applied to loads within their working load limit as specified for the particular end fitting being applied. Design factor 5:1.
| Brand | CM |
| Model | Hook & Eye Turnbuckle |
| Model # | 1006HE |
| WLL (lbs) | 2,250 |
| Thread Dia. (in) | 5/8 |
| Take Up (in) | 6 |
| Weight (lbs) | 2.5 |
- Turnbuckles can be used to apply tension to wire rope or cable.
- Composed of a forged body and two end fittings.
- End fittings can be eyes, jaws, or hooks.
- Apply turnbuckles in a straight in-line manner only. Do not allow anything to contact the turnbuckle body or end attachment threaded shanks.
- Apply load to the center of end attachment eyes and bowl of hooks. Do not tip load hooks or side load eyes.
- Inspect turnbuckles before use for bent components and worn threads. Do not use if body or end fitting is bent more than 10deg from the axial center line.
- Do not use if threads are visibly worn or feel loose. If in doubt, consult a rigging handbook or discuss with a qualified person.
WARNING
Improper use or care of turnbuckles can result in bodily injury or property damage. To avoid injury:
- Inspect turnbuckles for distortion and wear.
- Do not use if anything is in contact with the turnbuckle body or an end fitting.
- Only apply load to center of eyes and bowl of hooks.
- Do not exceed working load limit.
