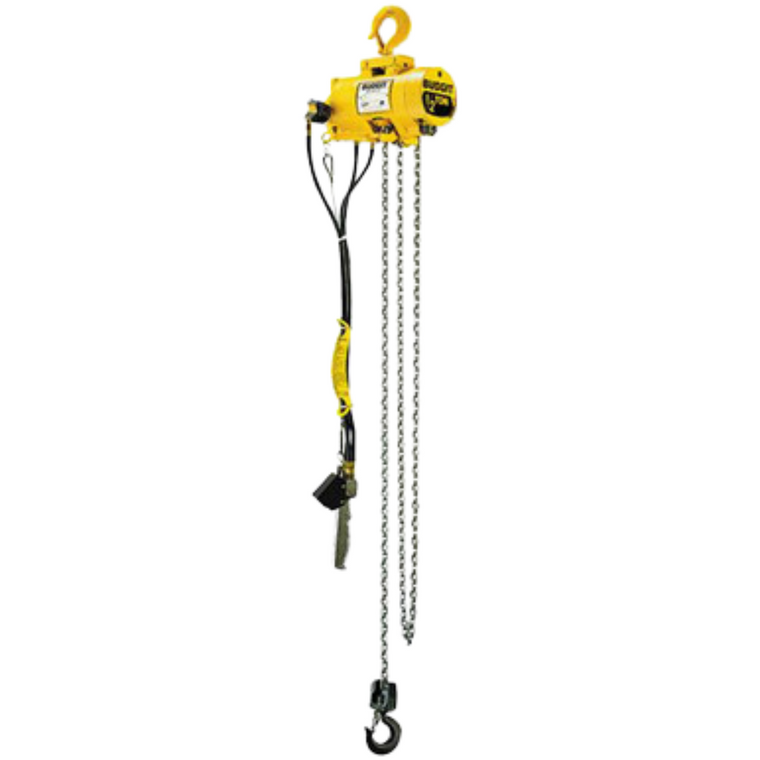

Budgit 2200 1/2 Ton Air hoist 45 fpm, Pendant Controlled - 2216
$4,651.50
The Budgit 2200 1/2 Ton Air Hoist has exceptional versatility that makes it adaptable to various lifting needs, with seamless performance across multiple applications. Its compact, space-saving design simplifies shipping, reducing logistical and financial burdens, and is an ideal fit for facilities with limited space. Proudly made in the USA, the Budgit Air Hoist is crafted with precision and care, representing American manufacturing excellence and offering the highest quality and reliability you can trust.
| Brand | Budgit |
| Model | Series 2200 |
| Capacity (Tons) | 1/2 |
| Lifting Speed (FPM) | 45 |
| Air Consumption | 48 SCFM at 90 PSI |
| Control | PENDANT THROTTLE CONTROL |
| Number of Chains | 1 |
| Weight, Base Model (lbs) | 46 |
- Pull cord control provides a lightweight, economical hoist for accurate control of loads
- Pendant throttle control hoists offer ergonomic one-handed controls, for ease of operation
- Inlet air swivel with built-in strainer provides free hoist movement
- Aluminum frame and end cover contributes to the lightweight, easily portable, and rugged design
- Heavy duty shoe type brake is a proven design for stopping and holding loads in heavy duty applications
- External adjustment screws for decreased lift and lower speeds
- External brake adjustment
- Limit stops prevent over-travel in upper and lowering directions
- Equa-torque gearing of alloy steel, heat treated spur gears is accurately machined to provide a close meshed, compact gear reduction
- Eight-vane motor provides high torque, smooth starting and excellent control
- Tapped exhaust port 1/2 NPTF. for CLEAN applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation
