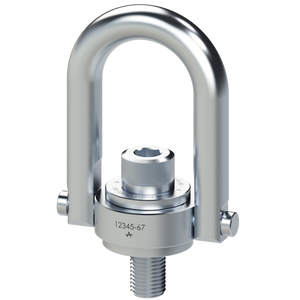

ADB Safety Engineered 1,250 lb. Long Bar Stainless Steel Hoist Ring, 29322
$349.28
Established in 1932, Ace industries have supplied replacement, maintenance, and repair parts from original equipment manufacturers (OEM) for over 90 years. Our parts department has extensive knowledge of all ADB hoist rings. At Ace Industries, we stock over 1000s of parts and accessories that can be ready to ship the next day. We can assist in finding the right new in-stock part to fit your needs, whether the hoist is current or discontinued. Ace industries also sell brand-new electric chain, air powered, wire rope, and manual hoists; when it is time to replace your unit, contact an Ace Industries Professional at 800-733-2231 or visit our website aceindustries.com.
| Capacity(lbs) | A (in.) | B (in.) | C(in.) | D(in.) | E (+/- .12)(in.) | F (+/- .060)(in.) | G(in.) | H (+/- .060)(in.) | J(in.) | K(in.) | L(in.) | M(in.) | TL(ft.-lbs.) | Weight(lbs.-oz.) |
| 1,250 | 0.88 | 3.25 | 1.22 | 3/4 | 0.78 | 6.72 | 1/2-13 | 3.52 | 1.99 | 1.50 | 0.16 | 4.25 | 14 | 2 lb. 12 oz |
- Material:300 Series Stainless Steel
- Design Factor:5:1, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis, Standard tolerance ± .030 inch unless otherwise specified
- Range of Movement:Swivel 360°, Pivot 180° Under Load
- Specifications:NDT: 100% Liquid Penetrant Tested Per ASTM E1417, Purification Process: Clean & Passivate Per ASTM A967, QQ-P-35 TYPE II
- Typical Applications:Use Stainless for Corrosive, Cryogenic or Elevated Temperature Environments
- 150% Proof Load Tested
