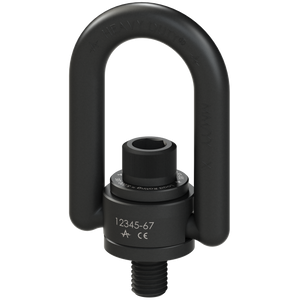

ADB Heavy Duty- 10,000 lb. Black Oxide Hoist Ring, 33107
$176.13
Established in 1932, Ace industries have supplied replacement, maintenance, and repair parts from original equipment manufacturers (OEM) for over 90 years. Our parts department has extensive knowledge of all ADB hoist rings. At Ace Industries, we stock over 1000s of parts and accessories that can be ready to ship the next day. We can assist in finding the right new in-stock part to fit your needs, whether the hoist is current or discontinued. Ace industries also sell brand-new electric chain, air powered, wire rope, and manual hoists; when it is time to replace your unit, contact an Ace Industries Professional at 800-733-2231 or visit our website aceindustries.com.
| Capacity(lbs) | A | B | C | D | E +/- .12 | F | G | K | L | M | TL (ft-lbs) | Weight (lbs) |
| 10,000 | 1.50 | 5.10 | 2.05 | 1.00 | 2.20 | 7.37 | 1 -8 | 2.81 | 0.18 | 3.20 | 230 | 7.81 |
- Material:Forged and machined high strength alloy steel
- Design Factor:Minimum Design Factor = 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis
- Range of Movement:Swivel 360°, Pivot 180° Under Load
- Specifications: Meets Military Specification No. MIL-STD 209, Meets ANSI/ASME B30.26
- Finish:Black Oxide Finish for corrosion resistance, * Also available in a wide range of plating – e.g Cadmium, Titanium-Cadmium, Nickel, etc.
- Typical Applications:ADB’s Heavy Duty® Hoist Rings are specified and used in nuclear energy equipment
- 200% Proof Load Tested
