HANDLE-IT BR-10 BUILD-A-RAIL GUARD 10' Length

SKU:
BR-10

Call For Pricing (800) 733-2231

(No reviews yet)

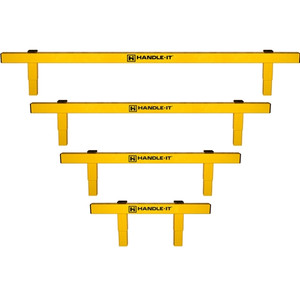

Build-A-Rail Guard Rails are heavy-duty, customizable, and easily assembled to protect property from damage due to forklift impact. Build rail systems one, two, or three rails high by just stacking rail units one on top of the other. Available in 4 foot, 6 foot, 8 foot, and 10-foot lengths. It Can be coupled together to make runs as long as you want. Make 90-degree corners by connecting two rail systems together with a corner connector.

Our Build-A-Rail carries a three-year limited warranty on all materials and workmanship.

Current Stock:
Web Width (in) 1
Plys 1
Leg Angle/LBS 90 / 1,600 lbs
Oblong Link (in) A 0.5 x B 2.7 x C 4.8
Sling Hook (in) D 0.75 x E 3.13 x F 0.93
  • Barriers are rated to withstand an impact of 10,000 lbs. at 4 MPH and will keep valuable equipment safe from forklift traffic.
  • Rail sections are constructed of sturdy 5/32″ wall 4″ × 4″ steel tube
  • Base units are constructed of 5/32″ wall 4″ × 4″ steel tube welded to 1/2″ thick 10″ × 10″ base plates
  • Highly visible, yellow powder coat painted steel units provide a visible, durable, and attractive finish
  • Durable and attractive black plastic end caps close ends and tops giving a finished look
  • Stackable and side-by-side joinable units provide flexibility in guard rail system design
  • Straight sections and 90 degree turns are easily accomplished using straight and corner couplers
  • Build-A-Rail sections are installed correctly by following easy-to-use instructions
