Suncor - 5/8" x 1" Shoulder Eye Bolt 316-NM Stainless Steel
$36.57
(No reviews yet)
Write a Review
Suncor Stainless

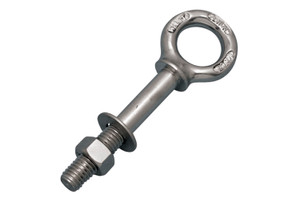

Suncor - 5/8" x 1" Shoulder Eye Bolt 316-NM Stainless Steel
The Shoulder Eye Bolt includes one nut and one washer and is UNC thread. It is available in sizes ranging from 1/4 ³ to 1 ³ to fit every project. This eye bolt is made from grade 316-NM stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.
| Model Number | A - Size(in.) | B (in.) | C (in.) | D (in.) | E (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lb.) | Weight (lb.) |
| S0314-1603 | 5/8 | 1.25 | 1.00 | 0.75 | 1.13 | 2.28 | 3.45 | 1.17 | 3440 | 0.56 |
- Thread Type: UNC
- Specification: ASME B30.26
