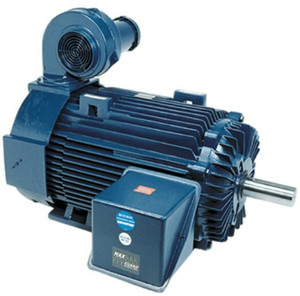

10 HP, Magnetek Blue Max TENV motor

10 HP, Magnetek Blue Max TENV motor

10 HP, Magnetek Blue Max TENV motor

Electromotive Systems BlueMax motors offer the most complete line of inverter duty motors in the industry. This motor series, designed to Magnetek's specifications, is ideal for use in any application where precise motion control is needed. Tests have shown that these motors are capable of a 1000:1 speed range when used with our Impulse VG+ Series 3 Flux Vector motor control.

  • 1 to 4000 Horsepower
  • Suitable for CMAA Class A through F.
  • 1.0 Service Factor on PWM drives.
  • Available

  •     Totally Enclosed Non-Ventilated (TENV) 60 Min. duty.
        Totally Enclosed Blower Cooled (TEBC) continous duty
        Totally Enclosed Non-Ventilated (TENV)continous duty.
  • NEMA Design A, optimized for operation with IGBT inverters.
  • Class F insulation, (449 Frame Class H) with patented Max Guard winding system for use with IGBT variable frequency drives.
  • Class F thermostats (klixons) in all three phases.
  • Cast iron frame and brackets for strength and corrosion resistance.
  • 230/460 volt and 575 volt, 3 phase, 60 Hz (143T to 286T Frame).
  • Available options include encoders, NEMA C Face mounting, Class H insulation, space heaters, explosion proof, severe duty treatment, douleshaft/tapershaft, brakes, inpro seals.
  • Two year warranty.
RPM
Summary
Base Price: $2,746.00 Customized Price: $2,746.00
  • 1800
